Model 200
Model 200 Manually Controlled Hand-Held Closed-Dispense System

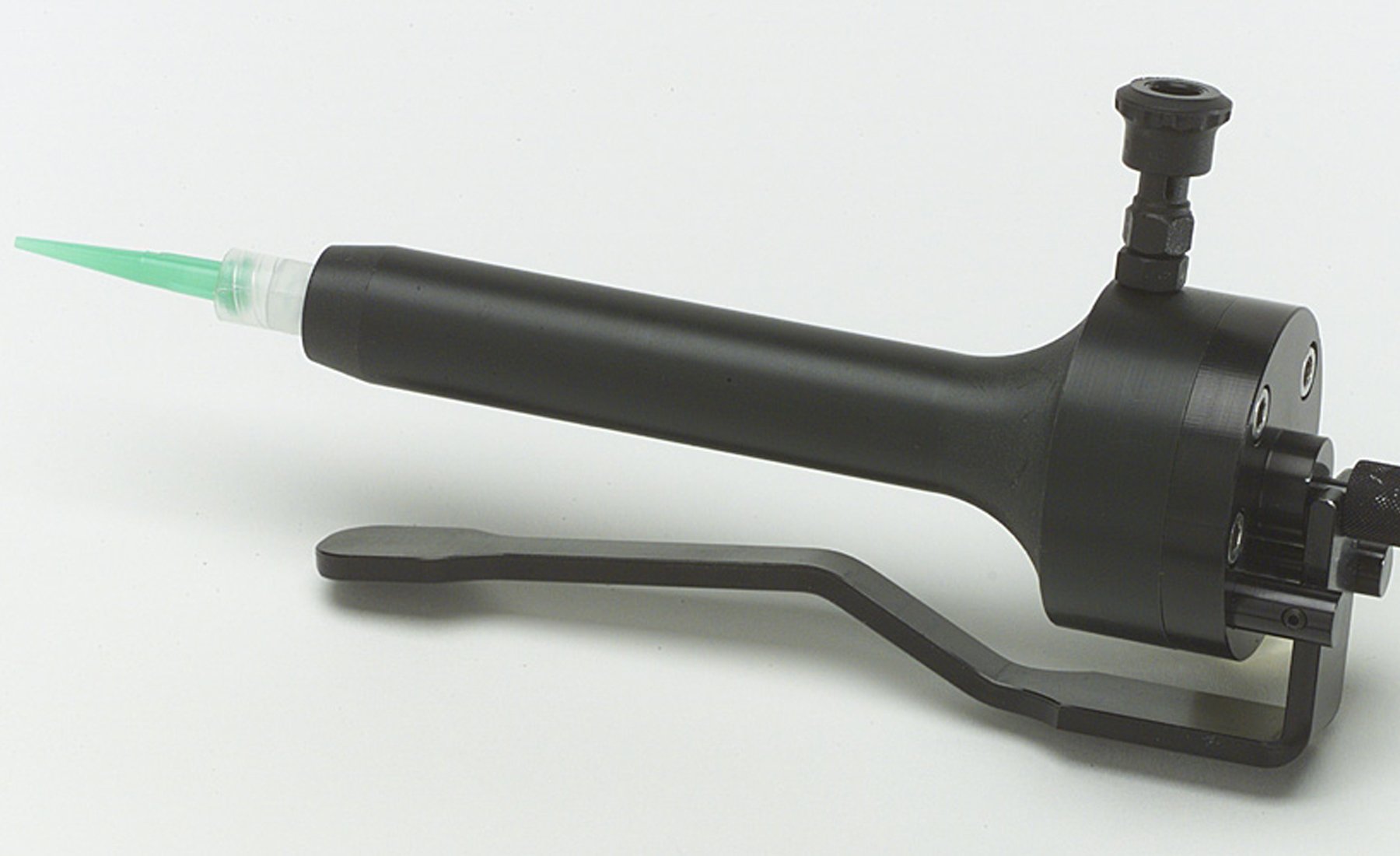

The Dymax Model 200 is a manually controlled dispensing system. Accurate dispensing is achieved through the use of a unique normally-closed, hand-held diaphragm valve. The diaphragm valve is designed with a wand-style body to make it more ergonomic for users.
This system can be used for a variety of applications including dot, bead, and potting applications. This valve is ideal for dispensing UV adhesives, cyanoacrylates, inks, and other low-to-medium viscosity (up to 5,000 cP) fluids.
Dymax hand-held fluid dispensing systems are engineered for optimal performance and long service life.
Features
Features
- High-quality, light-blocking polyethylene fluid tubing in two sizes – 3/8 in OD for maximum flow and 1/4 in OD to provide flexibility for easy handling
- High-quality, air precision regulator supplied for precise fluid control
- Air filter regulator includes an integrated shutoff valve and pressure exhaust to quickly and safely depressurize the system, eliminating the need for the operator to open and close the regulator
- Easy-to-open, swing-down toggles on the bottle and pail reservoir
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touch| Property | Specifications |
|---|---|
| Valve type | Hand-held diaphragm valve, normally closed |
| Construction materials, wetted parts | PTFE non-stick coating; Delron |
| Dimensions (H x D) | 6.45 in x 2.20 in [2.2 cm x 11.4 cm] |
| Warranty | 1 year from purchase |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touchPart Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.
Model 200 System
C- T15218
Clearance - Model 200 Diaphragm Valve
Limited quantities, please submit RFQ for pricing and availability.
T20050
Complete system (without reservoir)
T20065
Cartridge drop-in - 6 oz [160 mL]
T20085
Cartridge drop-in - 12 oz [300 mL]
T20105
Cartrdige drop-in - 20 oz [550 mL]
T20145
Large bottle drop-in - up to 1 Gallon
T20165
Pail drop-in - to 15 Liter
Accessories & Spare Parts
C- T15279
Clearance - Lab stand for cartridge reservoir system – 24″ [60.96 cm]
Limited quantities, please submit RFQ for pricing and availability.
T15466
Valve stand
T16307
Air filter regulator with dump valve
