Needle & Syringe Bonding Adhesives
Medical-Grade Adhesives For Needle and Syringe Assembly
Dymax needle bonding adhesives are ideal for high-speed, high-volume automated syringe assembly lines that incorporate inline testing and packaging. The medical adhesives bond “on-demand” when exposed to LED or UV/Visible light energy.
Single component and no solvents added, medical-grade adhesives also fluoresce blue or red for easy in-line testing and inspection. Fluorescing properties enhance the performance of automated sensing and vision systems, for easy detection of material coverage and volume.

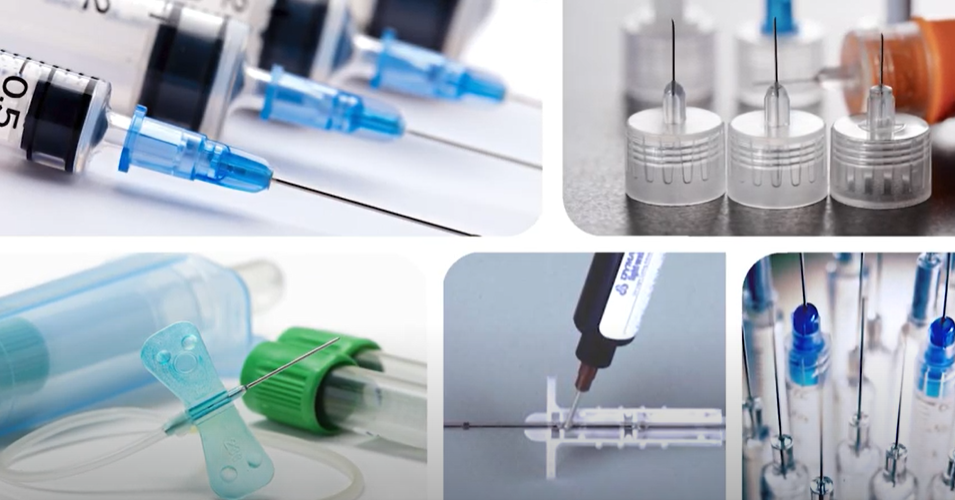

These needle bonders adhere to a wide variety of plastics, such as polycarbonate, PA, and PMMA, as well as metal and glass substrates. Applications include:
- Bonding cannulas to hubs in various hypodermic and biopsy needles
- Syringes
- Winged infusion sets
- Blood transfusion sets
- Blood collection needles
- Dialysis machines
Features
- Cure within seconds using LED or UV/Visible light
- LED-curable materials available
- Single component - no mixing
- Compatible with gamma, EtO, and E-Beam sterilization
- Fluoresce for easy in-line quality inspection
- No solvents added
Medical-Grade Adhesives For Needle and Syringe Assembly
Medical-Grade Adhesives For Needle and Syringe Assembly
MD® Adhesives for Needle Bonding and Syringe Assembly
Product Number
Product Description
Regional Availability
1045-M
Low viscosity, multipurpose UV/LED curable adhesive designed to bond the glass, SS, ABS, and PC substrates used to assemble prefilled syringes, single-use devices, and auto, pen, and wearable injectors.
HLC-M-1000
HLC-M-1000 wicking-grade hybrid light-curable™ adhesive cures with UV/Visible light and features secondary moisture/contact cure capability for rapid bonding in both light and darkness.
1406-M
Needle bonding adhesive cures using LED light at either 385 or 406 nm wavelengths for fast bonding of substrates used in needle/syringe assemblies and other medical devices. This product fluoresces blue, has superior resistance to water and yellowing.
1405M-T-UR-SC
LED-optimized (405 nm) adhesive for bonds a variety of metals and plastics commonly used in the manufacture of needle bonding and medical devices. This product features Encompass Technology which combines color-changing and fluorescing into one product.
1405-M-UR-SC
LED-optimized needle bonding adhesive cures at 385 nm or 405 nm wavelengths for fast bonding of plastics and metals typically used in syringe and medical device manufacturing. This product has a low viscosity and features Encompass Technology which combines color-change and fluorescing into one product.
Product Number
Product Description
Regional Availability
1501-M-UR
LED and UV-curable medical device adhesive designed for bonding lightly colored opaque, or translucent substrates. This product features Ultra-Red fluorescing technology.
1401-M-UR
LED-curable (385 and 405 nm) medical device adhesive for needle bonding and medical device assembly. This adhesive cures tack-free upon exposure to UV/LED light and features Ultra-Red fluorescing technology. This product has a medium viscosity for easy dispensing onto components.
1402-M
LED-Curable (385 and 405 nm) medical device adhesive for rapid bonding of plastics and metals typically used in the manufacture of medical devices and syringes. This product is non-yellowing, has a low viscosity and fluoresces blue.
1403-M
LED-curable needle bonding adhesive cures at 385 nm or 405 nm UV wavelengths for very fast joining of metals and plastics typically used in the manufacture of syringes and medical device assemblies. This product fluoresces, cures tack-free, and features a low viscosity for easy dispense onto components.
1404-M-UR
LED-curable (385 and 405 nm) needle bonding adhesive rapidly bonds metals and plastics commonly used to manufacture medical devices, needles, and syringes. This product is low-wicking, high viscosity, and features Ultra-Red fluorescing technology.
1180-M-T
Flexible, general-purpose medical adhesive bonds to a wide variety of plastics and metal substances.
