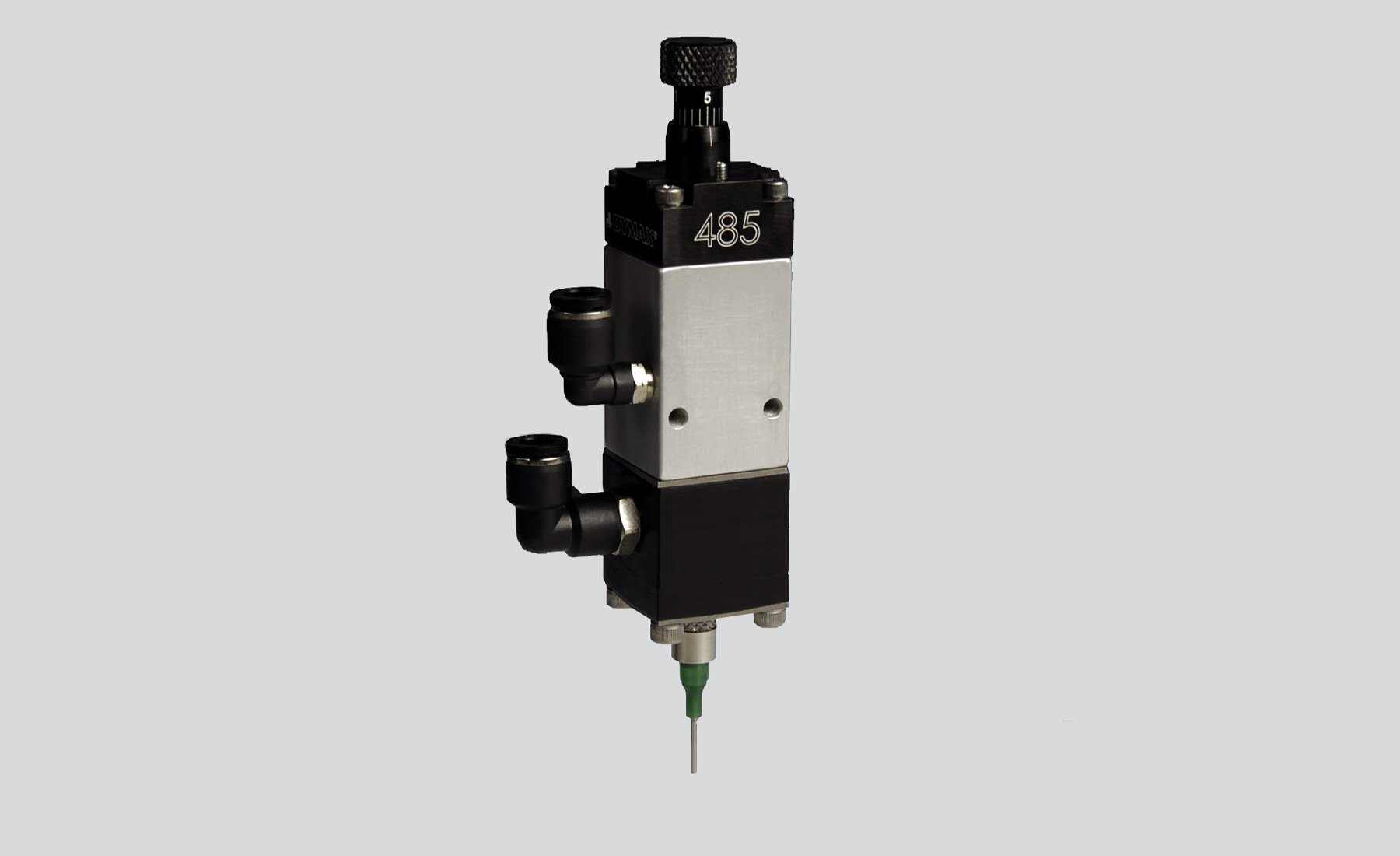

Model 485 Needle Valve Dispensing System, Normally Closed
The Dymax Model 485 pneumatic, normally closed needle valve is designed to deliver precise dots or very fine beads of low- to high-viscosity fluids. The valve’s stroke adjustment allows for fine-tuning of the dispense volume, ensuring precise and consistent deposits. Air pressure through the valve retracts the needle assembly from the seat allowing fluid to flow from the valve fluid inlet to the dispensing tip. When the air pressure is eliminated, the spring returns the needle back to its position, closing the fluid path and ending the dispense cycle. The Model 485 is ideally suited for a wide range of applications including glob-top dispensing and dispensing UV light-curable adhesives in medical-device manufacturing.
The Model 485 needle valve is available by itself for mounting into automated systems or is also available in a bench-top configuration, paired with the Dymax DVC-345 bench-top valve controller and a material reservoir (various styles and sizes available).
Features
Features
- Stroke adjustment for precise control over dispensing volumes
- Shot-to-shot consistency when used with the DVC-345 controller
- Lightweight, easy to handle and mount in automated or bench-top systems
- Able to dispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware
- Compatible with most stand fluid packages and delivery systems
Resources
Resources
Manual
Selector Guide
Product Bulletin
Equipment Drawings
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touch| Property | Specifications |
|---|---|
| Valve type | Pneumatic needle valve, normally closed |
| Construction materials | SS, Anodized Aluminum (body); Acetal/SS (wetted path); silicone (wette valve seals) |
| Operating air pressure | 60-80 psi (4.1 – 5.5 bar) |
| Activation | DVC-345 valve controller or 3-way solenoid valve |
| Maximum air pressure | 80 psi (5.5 bar) |
| Electrical supply (controller) | 110/220 VAC |
| Valve air inlet thread | 10-32 |
| Valve fluid inlet tread | 1/8 in (3.2 mm) NPT |
| Dimensions (W x H x D) | 1.13 in x 5.14 in x 1.13 in (2.87 cm x 13.06 cm x 2.87 cm) |
| Weight | 7.2 oz (0.2 kg) |
| Warranty | 1 year from purchase |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touchPart Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.
Accessories & Spare Parts
C- T15279
Clearance - Lab stand for cartridge reservoir system – 24″ [60.96 cm]
Limited quantities, please submit RFQ for pricing and availability.
T15466
Valve stand
T16307
Filter regulator
T16786
Controller airline kit
T16787
6 FT of fluid line kit – black 3/8″ OD PE
T16789
Reservoir airline kit
T17004
Large bottle drop-in tank assembly with high-precision regulator
T17020
Model 300 diaphragm valve
Model 485 System
T17731
Cartridge drop-in - 6 oz [160 mL]
T17732
Cartridge drop-in - 12 oz [300 mL]
T17733
Cartride drop-in - 20 oz [550 mL]
T17734
Large bottle drop-in - up to 1 Gallon
T17735
Pail drop-in - up to 15 Liter (straight or tapered)
T17832
Complete system (without reservoir)
T17837
Mini 1 Gallon ram pump - up to 3.8 Liter pail
