Edge-Carry Conveyor System

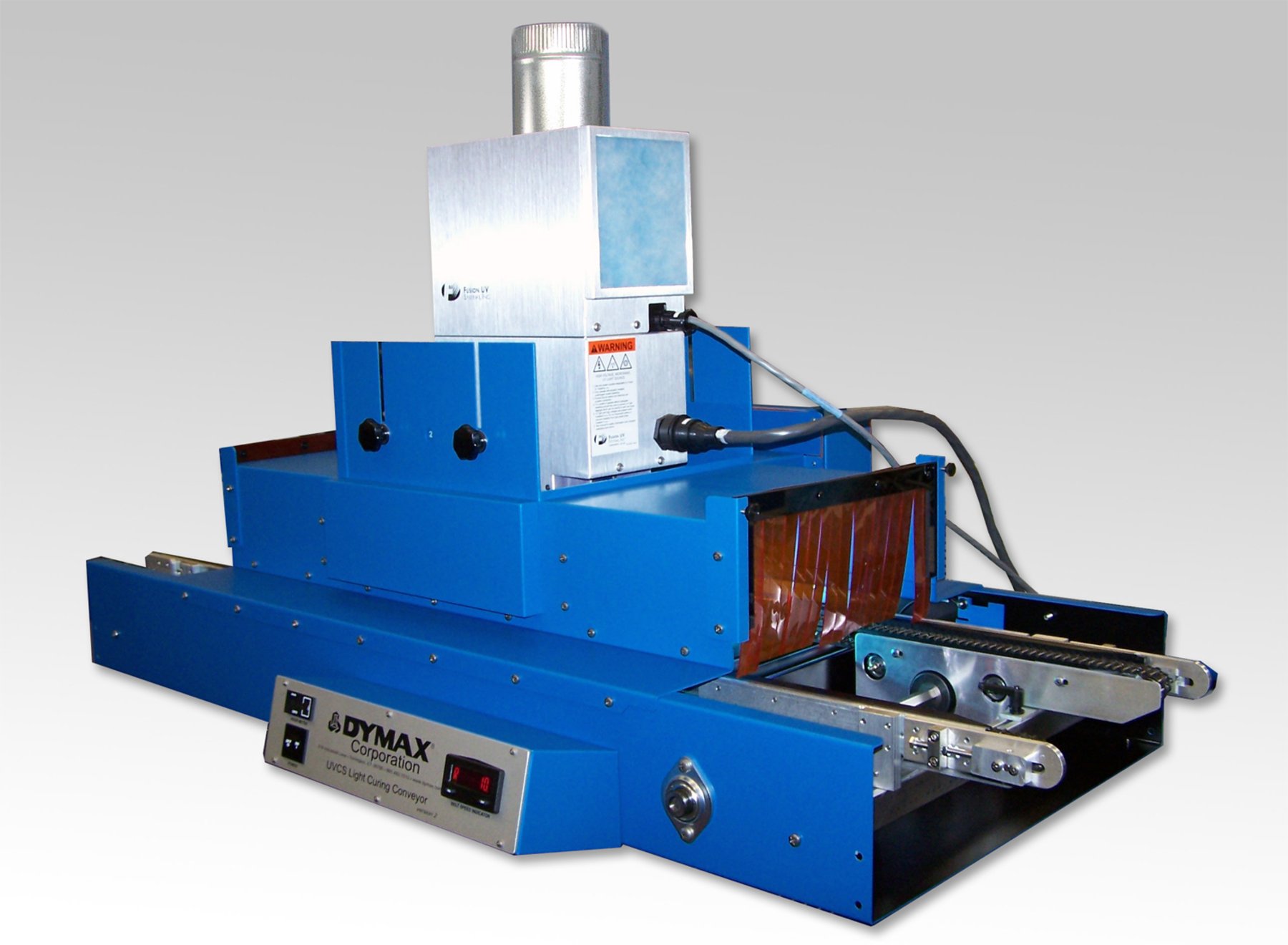

Dymax UV-Curing Edge-Carry Conveyor System Cures Multiple Sides at Once


Available Globally, Except Europe

These conveyors can be outfitted with a variety of lamp configurations based on application requirements. Configuration options allow flexibility when defining intensity requirements to keep operating costs to a minimum. Standard height clearance is 0.75 in across the entire 18 in width, which is ideal for low profile parts such as PCBs, and up to 6 in across a 13.75 in width, which can be increased to either 8 in or 12 in with optional risers installed.

The Dymax Edge-Carry series of conveyors are designed for efficient curing of UV light sensitive adhesives, inks, and coatings. Parts are transported along rails instead of a traditional conveyor belt. The rails allow light energy to reach multiple sides of the part at once. This is excellent for curing items such as circuit boards that may have components on both sides.

Choosing the right lamp(s) for your Edge-Carry Conveyor

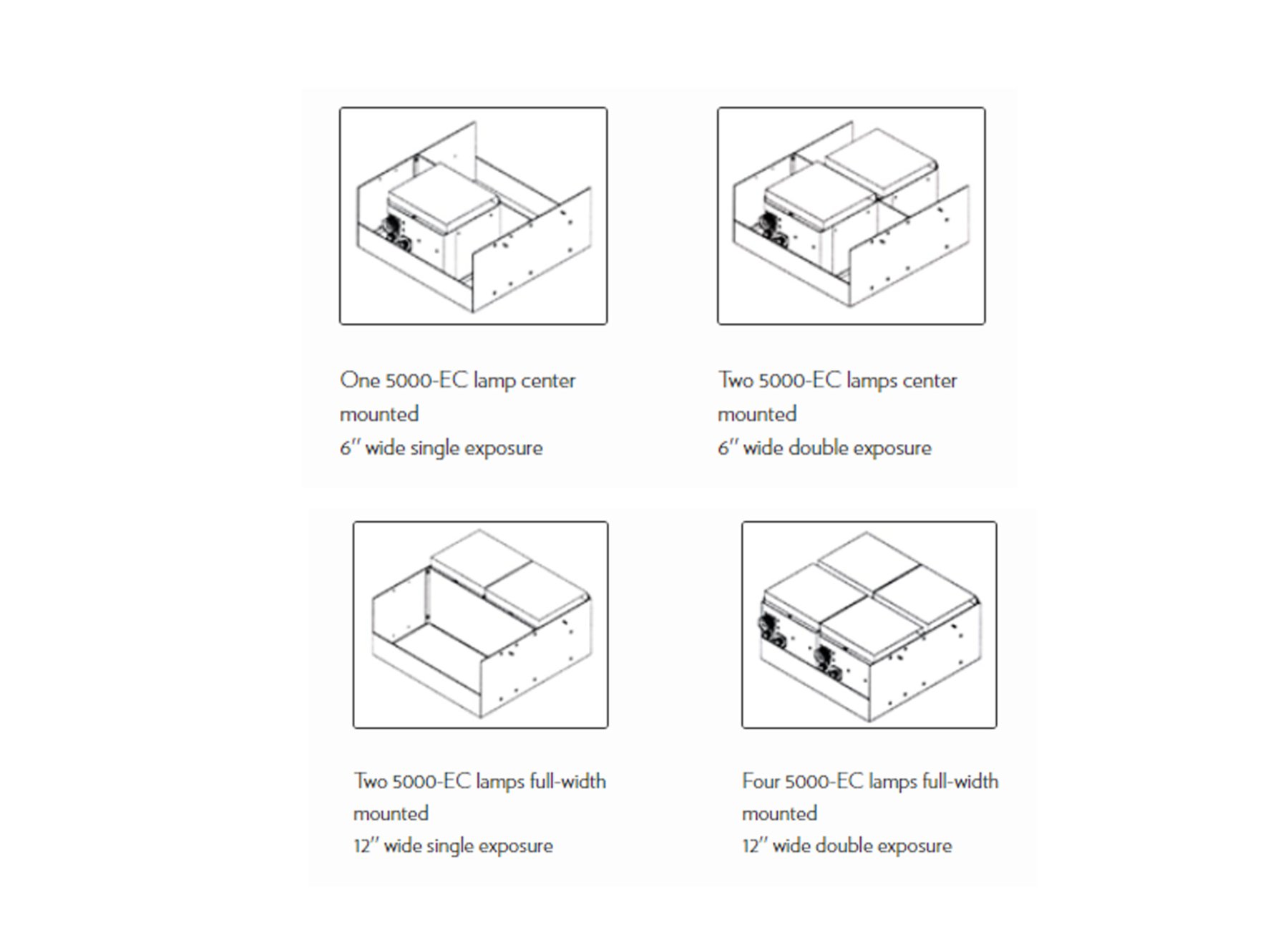

Edge-Carry series conveyors can be outfitted with one, two, or four Dymax 5000-EC lamps (sold separately). The system is also compatible with 2000-EC, and 1200-EC lamps, or Fusion F300 lamps.

5000-EC Lamps

These lamps provide moderate intensity (~200 mW/cm2) over a 6 in x 6 in (approximate) curing area. Their 400-Watt auto-switching power supplies accept 90 to 264 Volts AC and 47 to 63 Hz. With normal use, 5000-EC bulbs will retain 90% of their original intensity after 1,000 hours. 5000-EC lamps are recommended for small-to-medium throughput bonding applications. For faster or more tack-free cures, Fusion F300 lamps are recommended.

Features

Features

  • Available globally (except Europe)
  • Complete UV shielding
  • Controlled and consistent cure times
  • Adjustable width to 18 in (45.7 cm)
  • Adjustable lamp-to-part distance
  • Built-in variable speed exhaust fan and stack
  • Can be outfitted with either Dymax EC series or Fusion lamps
  • Center-mounted lamps with removable guides to channel parts into middle of conveyor
  • Accurate digital speed control with readout
  • Bench-top conveyor

Resources

Resources

System Specifications

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch
Property Specifications
Maximum chain spacing 18 in (45.7 cm)
Belt speeds (feet per minute) 1-32 fpm
Maximum parts height 6.25 in (15.86 cm)

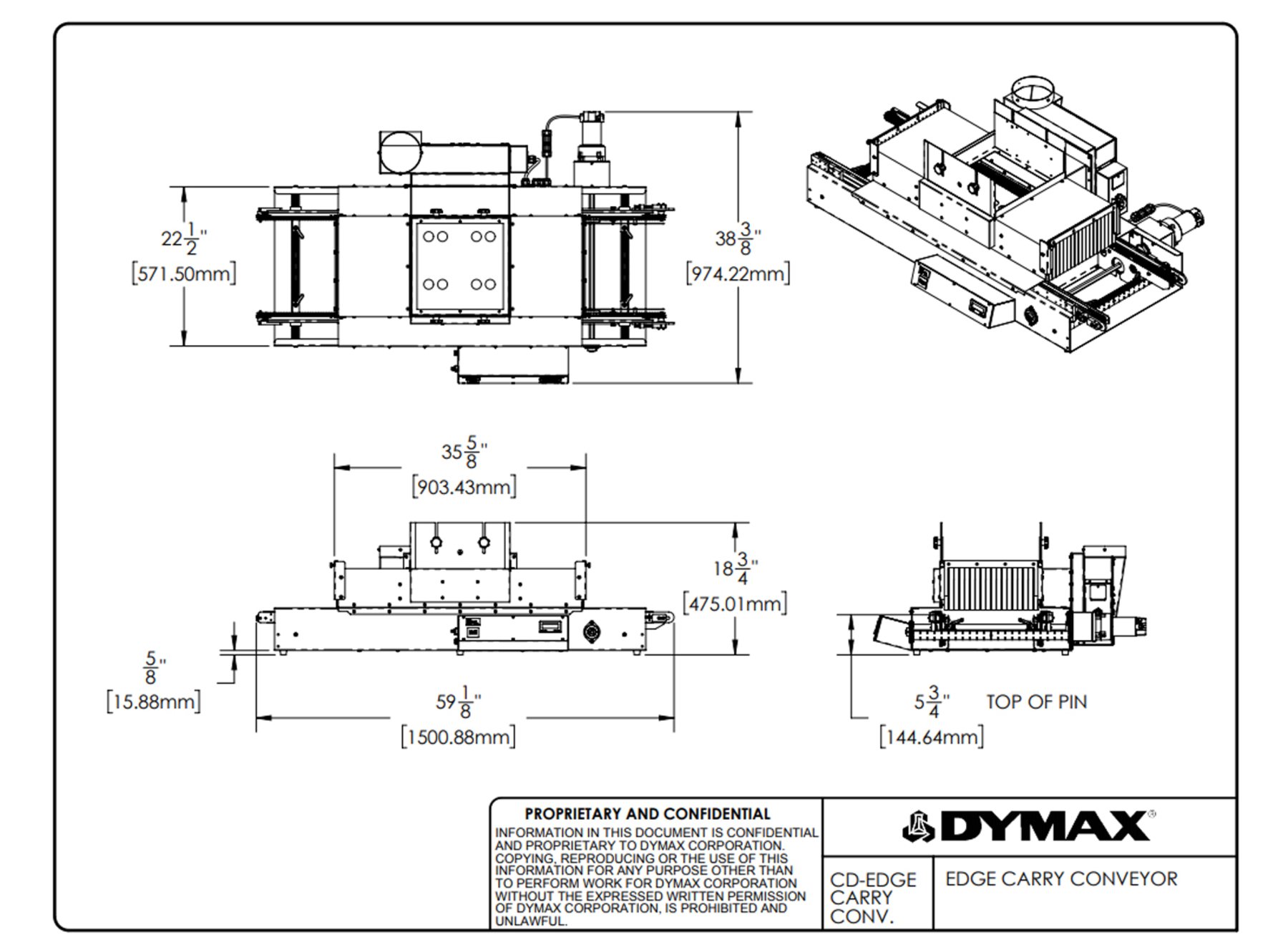

Overall dimensions (without lamps) 59 in L x 35 in W x 39.5 in H (150 cm x 89 cm x 100 cm)
Lamp adjustment range 3.5 in – 7.3 in (8.9 cm – 18.5 cm)

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch

Part Numbers

Build a complete solution or find replacement parts for your project

Limited quantities, please submit RFQ for pricing and availability.

40275

2 5000-EC Lamps

Cure width: 12" [30 cm]. Conveyor Voltage: 230V. Amperage with lamps: 8.8A. Total shipping weight: 410lbs [186 kg].

This conveyor has lamps that span the full width of the conveyor.

Global Except Europe

40324

1 5000-EC lamp

Cure width: 6" [15cm]. Conveyor Voltage: 120V. Amperage with lamps: 9.6A. Total shipping weight: 390lbs [177 kg].

This conveyor has center-mounted lamps that are supplied with removable guides to channel parts into the middle 6″ of the conveyor.

Global Except Europe

40325

2 5000-EC Lamps

Cure width: 6" [15cm]. Conveyor Voltage: 120V. Amperage with lamps: 17.6A. Total shipping weight: 410lbs [186 kg].

This conveyor has center-mounted lamps that are supplied with removable guides to channel parts into the middle 6″ of the conveyor.

Global Except Europe

40326

2 5000-EC Lamps

Cure width: 12" [30 cm]. Conveyor Voltage: 120V. Amperage with lamps: 17.6A. Total shipping weight: 410lbs [186 kg].

This conveyor has lamps that span the full width of the conveyor.

Global Except Europe

40327

4 5000-EC Lamps

Cure width: 12" [30 cm]. Conveyor Voltage: 120V. Amperage with lamps: 33.6A. Total shipping weight: 450lbs [204 kg].

This conveyor has lamps that span the full width of the conveyor.

Global Except Europe

40328

2 5000-EC Lamps

Cure width: 6" [15cm]. Conveyor Voltage: 230V. Amperage with lamps: 4.8A. Total shipping weight: 390lbs [177 kg].

This conveyor has center-mounted lamps that are supplied with removable guides to channel parts into the middle 6″ of the conveyor.

Global Except Europe

40329

2 5000-EC Lamps

Cure width: 6" [15cm]. Conveyor Voltage: 230V. Amperage with lamps: 8.8A. Total shipping weight: 410lbs [186 kg].

This conveyor has center-mounted lamps that are supplied with removable guides to channel parts into the middle 6″ of the conveyor.

Global Except Europe

40331

4 5000-EC Lamps

Cure width: 12" [30 cm]. Conveyor Voltage: 230V. Amperage with lamps: 16.8A. Total shipping weight: 450lbs [204 kg].

This conveyor has lamps that span the full width of the conveyor.

Global Except Europe

40332

1 2000-EC Lamp

Cure width: 9" [23 cm]. Conveyor Voltage: 115V to 208-240V. Total shipping weight: 390lbs [177 kg].

This conveyor has center-mounted lamps that are supplied with removable guides to channel parts into the middle 6″ of the conveyor.

Global Except Europe

40333

1 1200-EC Lamp

Cure width: 9" [23 cm]. Conveyor Voltage: 115V to 208-240V. Total shipping weight: 390lbs [177 kg].

This conveyor has center-mounted lamps that are supplied with removable guides to channel parts into the middle 6″ of the conveyor.

Global Except Europe

40334

1 2000-EC Lamp

Cure width: 9" [23 cm]. Conveyor Voltage: 115V or 208-240V. Total shipping weight: 390lbs [177 kg].

This conveyor has center-mounted lamps that are supplied with removable guides to channel parts into the middle 6″ of the conveyor.

Global Except Europe

40335

1 1200-EC Lamp

Cure width: 9" [23 cm]. Conveyor Voltage: 115V or 208-240V. Total shipping weight: 390lbs [177 kg].

This conveyor has center-mounted lamps that are supplied with removable guides to channel parts into the middle 6″ of the conveyor.

Global Except Europe

40280

2 Fusion F300 Lampes

Cure width: 12" [30 cm]. Conveyor Voltage: 208-240V. Amperage with lamps: 32.6A. Total shipping weight: 580lbs [263 kg].

This conveyor has lamps that span the full width of the conveyor.

Global Except Europe

40336

1 Fusion F300 Lamp

Cure width: 6" [15cm]. Conveyor Voltage: 208-240V. Amperage with lamps: 16A. Total shipping weight: 475lbs [215 kg].

This conveyor has center-mounted lamps that are supplied with removable guides to channel parts into the middle 6″ of the conveyor.

Global Except Europe

40519

ACCU-CAL™ 50-LED for LED Flood Units: Complete radiometer for LED flood and conveyor systems; includes storage/carrying case

Global (CE Marked)
