Manual: UVCS 2.0 with EC-Series Flood Lamps
UVCS 2.0 Conveyor with 5000-EC Lamps
Dymax UVCS 2.0 Conveyor with 5000-EC Lamps
Available Globally, Except Europe

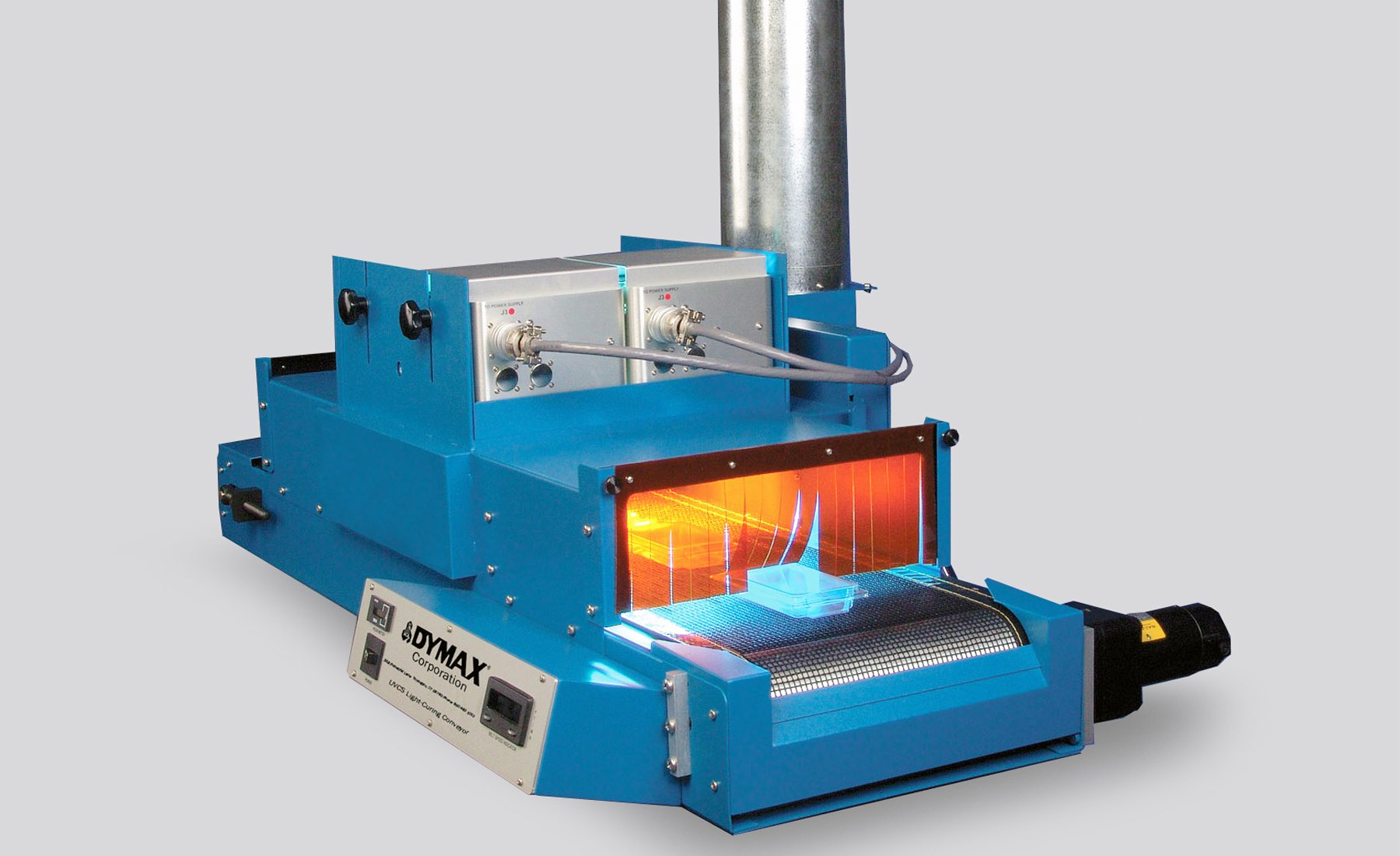

Dymax 12 in wide UV Curing Conveyor Systems (UVCS) offer consistent, fast, and safe UV curing. Designed for curing UV curable adhesives, coatings, and inks, these systems can be outfitted with a standard metal halide (longwave) or mercury (shortwave) bulbs.
This UV cure oven does not emit stray UV light and can be outfitted with one, two, or four moderate-intensity 5000-EC UV flood lamps.
Features
Features
- Available globally (except Europe)
- Consistent UV curing process
- Adjustable lamp-to-belt distance
- 4 in, 6 in, or 10 in vertical clearance
- Integral cooling and vacuum hold-down
- 1 to 32 feet per minute line speed

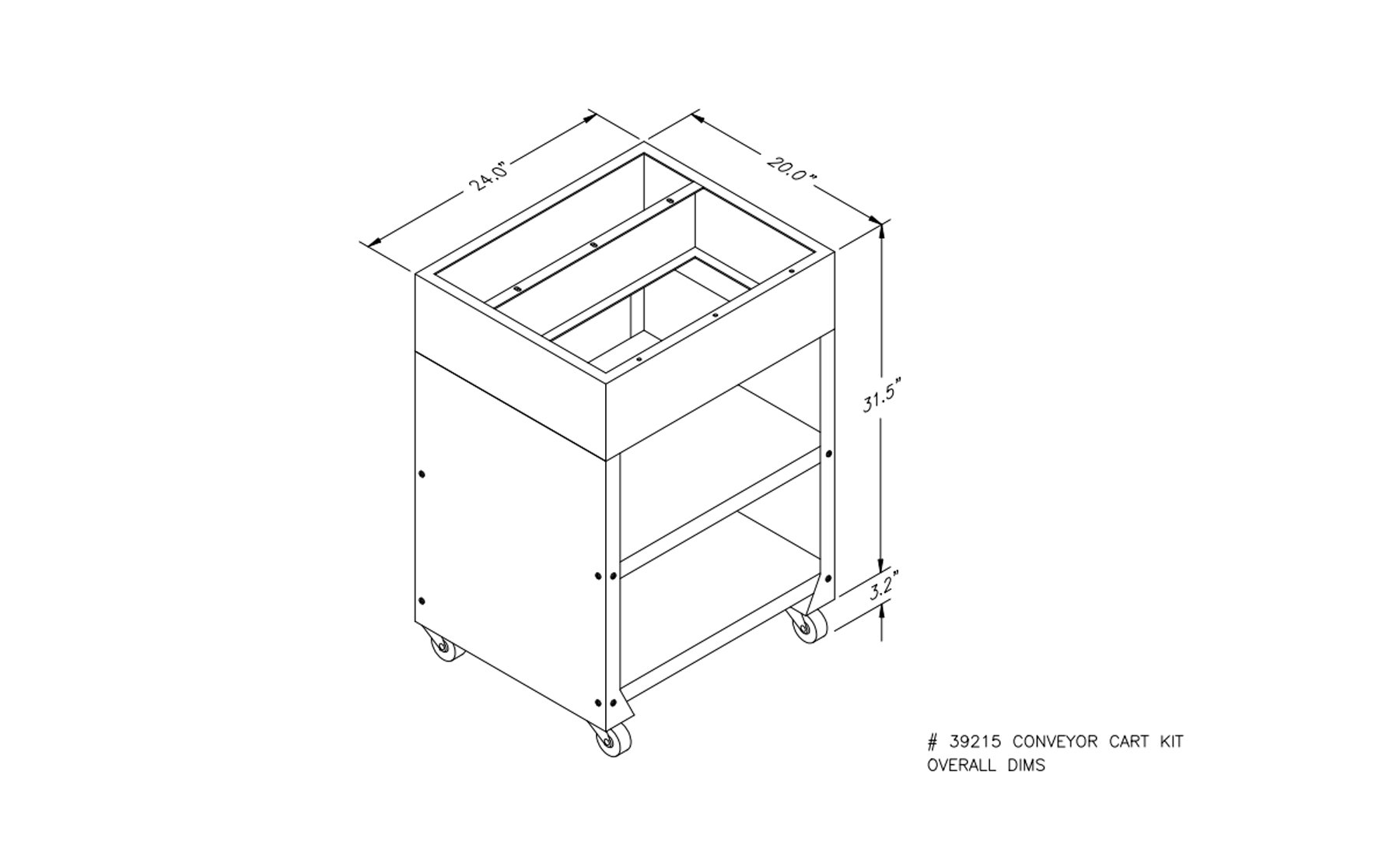

- Bench-top conveyor (cart optional)
Resources
Resources
Manual
How To
How to Validate a Conveyor Light-Curing Process
Quick Starts / FAQs
Quick Start: UVCS Conveyor with 5000-EC Lamps
Quick Start: UVCS Temperature Control
Quick Start: UVCS Conveyor Motor Replacement
Selector Guide
Guide: Light-Cure Equipment
Product Bulletin
Equipment Drawings
Drawing: UVCS 2.0 Conveyor
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touch| Property | Specifications |
|---|---|
| Maximum UVA Intensity / (320-395 nm)¹ | 200 mW/cm² |
| Maximum UVA Energy / (320-395 nm) @ 5 fpm | 1.25 J/cm² (Parts: 39060, 39065, 39080, 39085) |
| 2.5 J/cm² (Parts: 39070, 39075, 39100, 39105) | |
| Line Speed | 1 to 32 fpm |
| Illuminated Width | 6 in or 12 in (depending on the number and orientation of the 5000-EC UV lamps) |
| Voltage | Lamp(s) – 90V to 260V | Conveyor – 120V or 220/230V |
| Vertical Clearance | 4 in (Standard) | 6 in (with 2 in riser, Part 39218) | 10 in (with 6 in riser, Part 39280) |

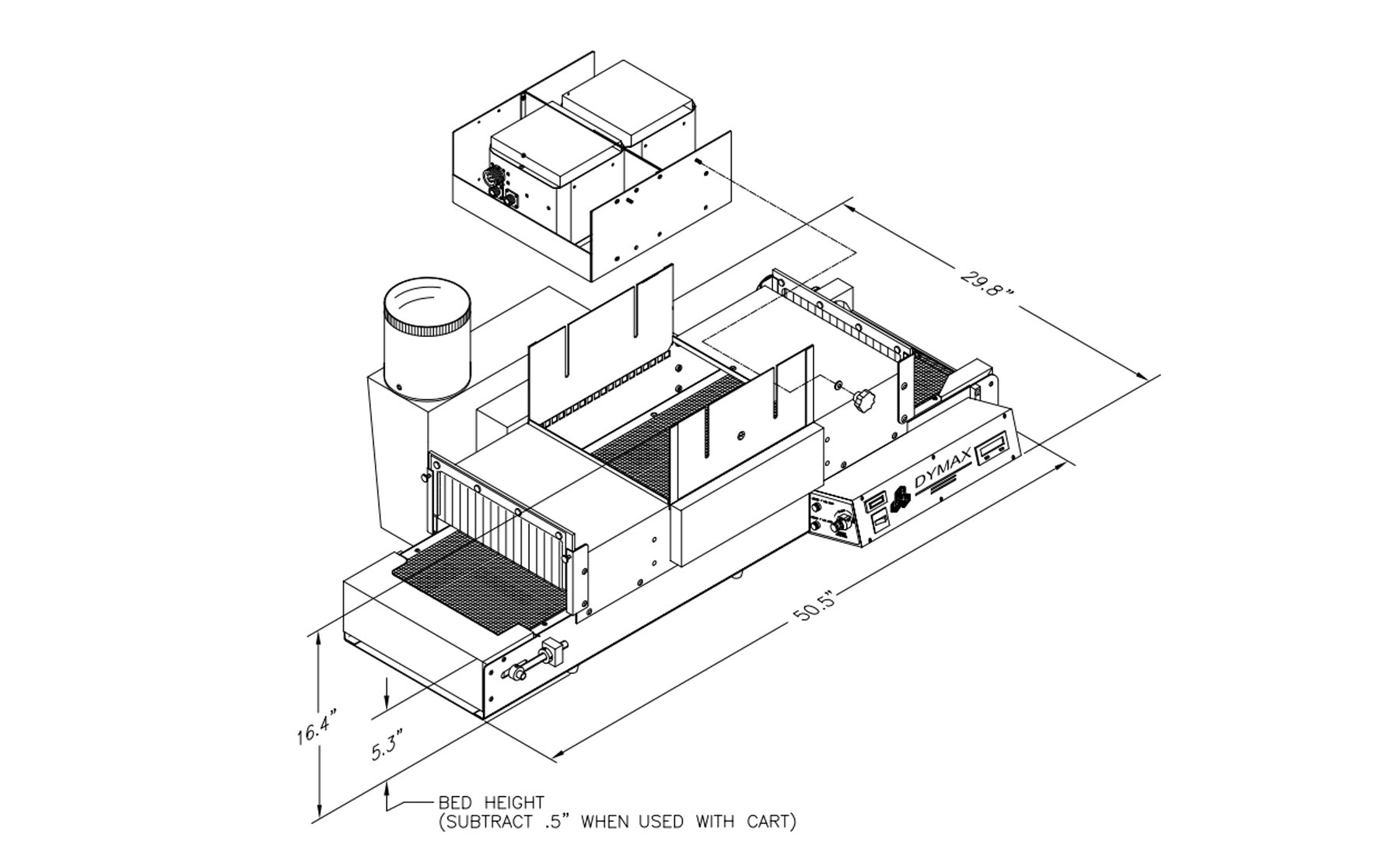

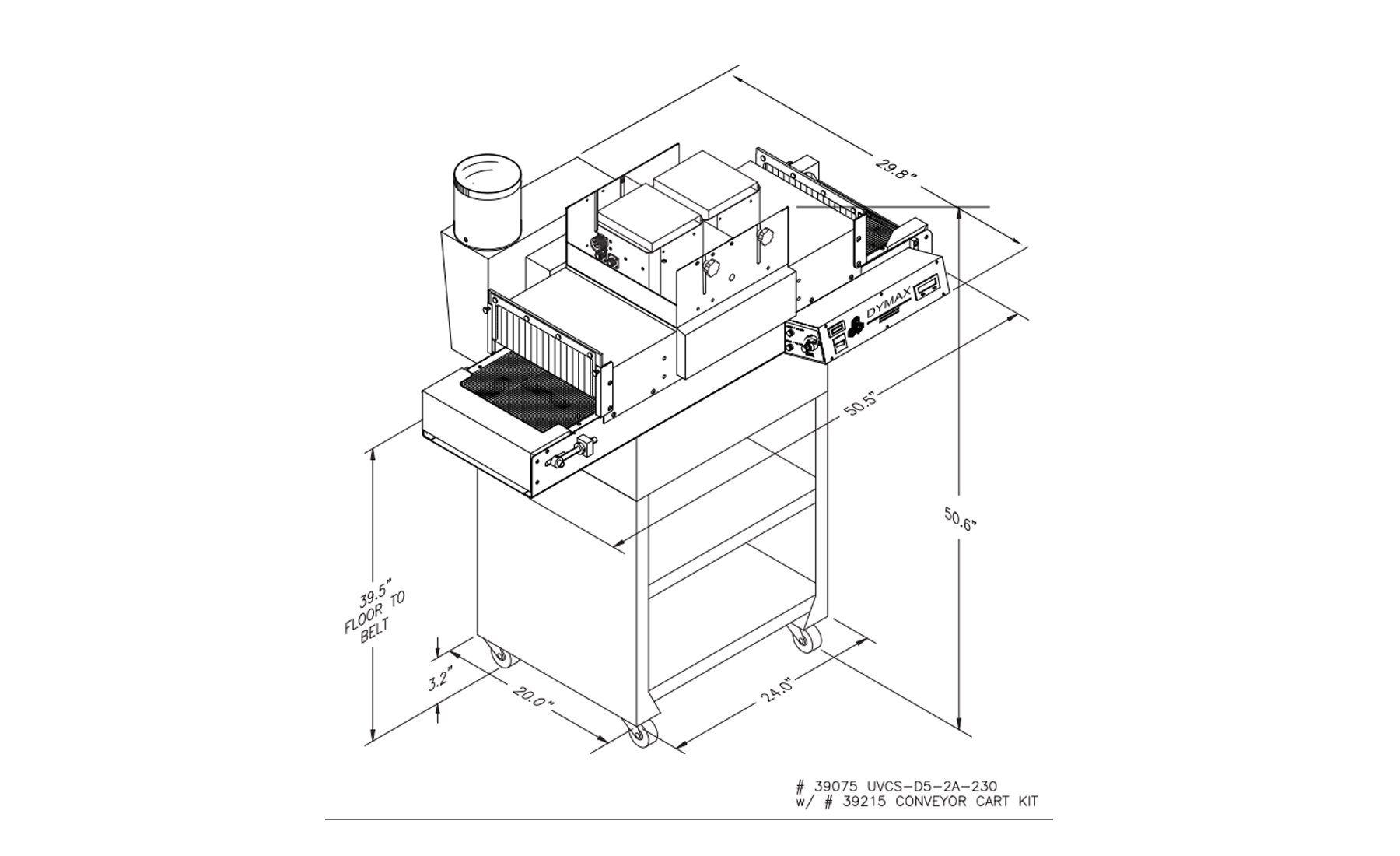

| Overall Dimensions | 50.5 in L x 29.8 in W x 16.4 in H (128 cm x 76 cm x 72 cm) |
| Bulb Life | 2,000+ hours with less than 20% degradation (typical) |
| ¹ | Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL™ 50 radiometer |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touchPart Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.

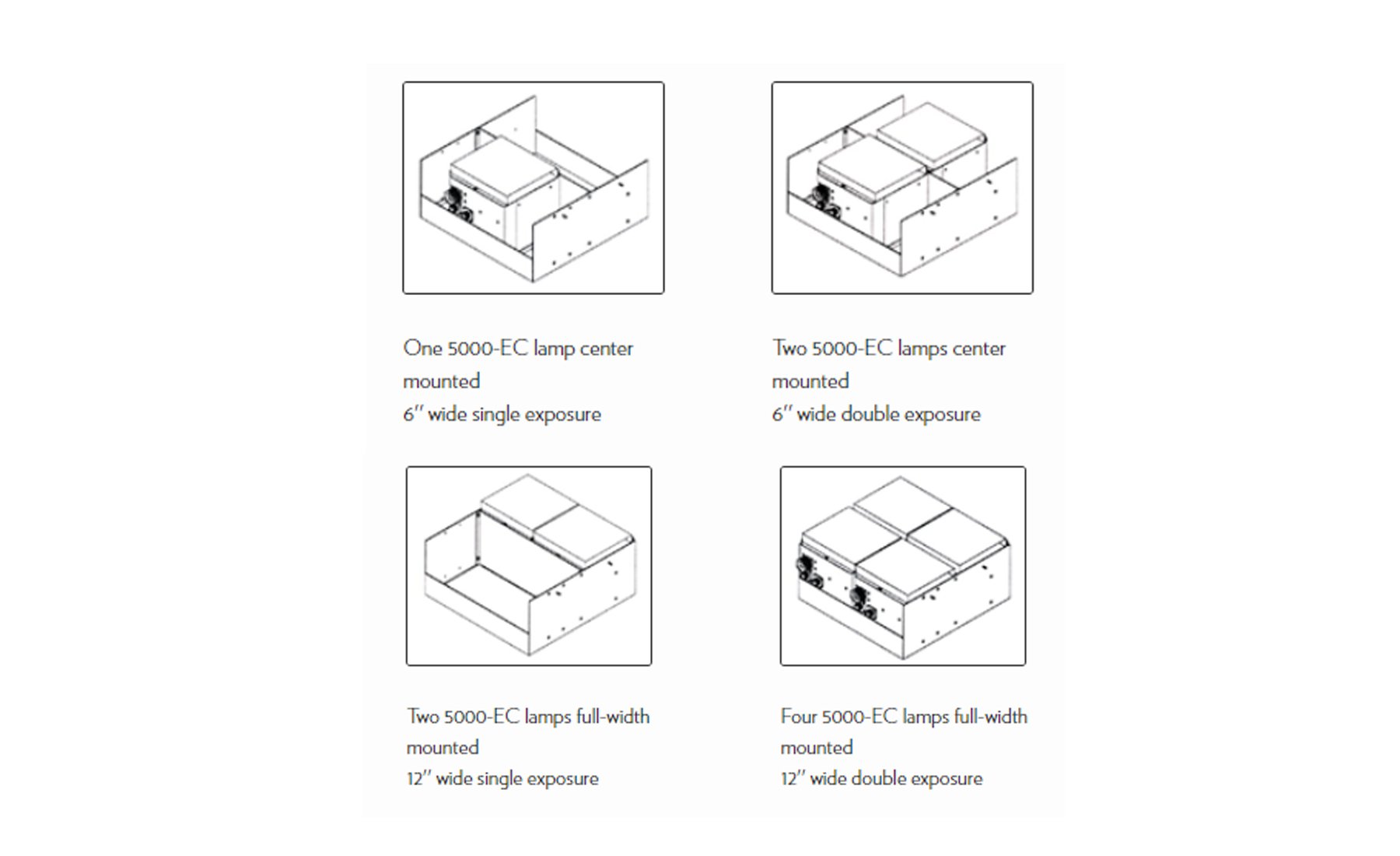

12″ UVCS with One 5000-EC (Center Mounted)
39060
One, 5000-EC, North American version (120V plug)
39065
One, 5000-EC, North American version (220/230V plug)
12″ UVCS with Two 5000-EC (Center Mounted)
39070
Two 5000-ECs, North American version (120V plug)
39075
Two 5000-ECs, North American version (220/230V plug)
12″ UVCS with Two 5000-ECs (Full Width)
39080
Two 5000-EC, North American version (120V plug). These conveyors have lamps that span the full width of the conveyor.
39085
Two 5000-EC, North American version (220/230V plug). These conveyors have lamps that span the full width of the conveyor.
12″ UVCS with Four 5000-ECs (Full Width)
39100
Four 5000-EC, North American version (120V plug). These conveyors have lamps that span the full width of the conveyor.
39105
Four 5000-EC, North American version (220/230V plug). These conveyors have lamps that span the full width of the conveyor.
Replacement Bulbs
36970
Mercury (Optional). These bulbs are primarily designed for curing UV inks and cationic epoxies.
*Typical bulb life is 2,000+ hours with less than 20% degradation
38560
Metal Halide (Standard)
*Typical bulb life is 2,000+ hours with less than 20% degradation
Accessories
39218
2" Riser for 6" Vertical Clearance
39280
6" Riser for 10" Vertical Clearance
Radiometers
39561
ACCU-CAL™ 50 for Flood Lamps and Conveyors
Includes storage/carrying case
