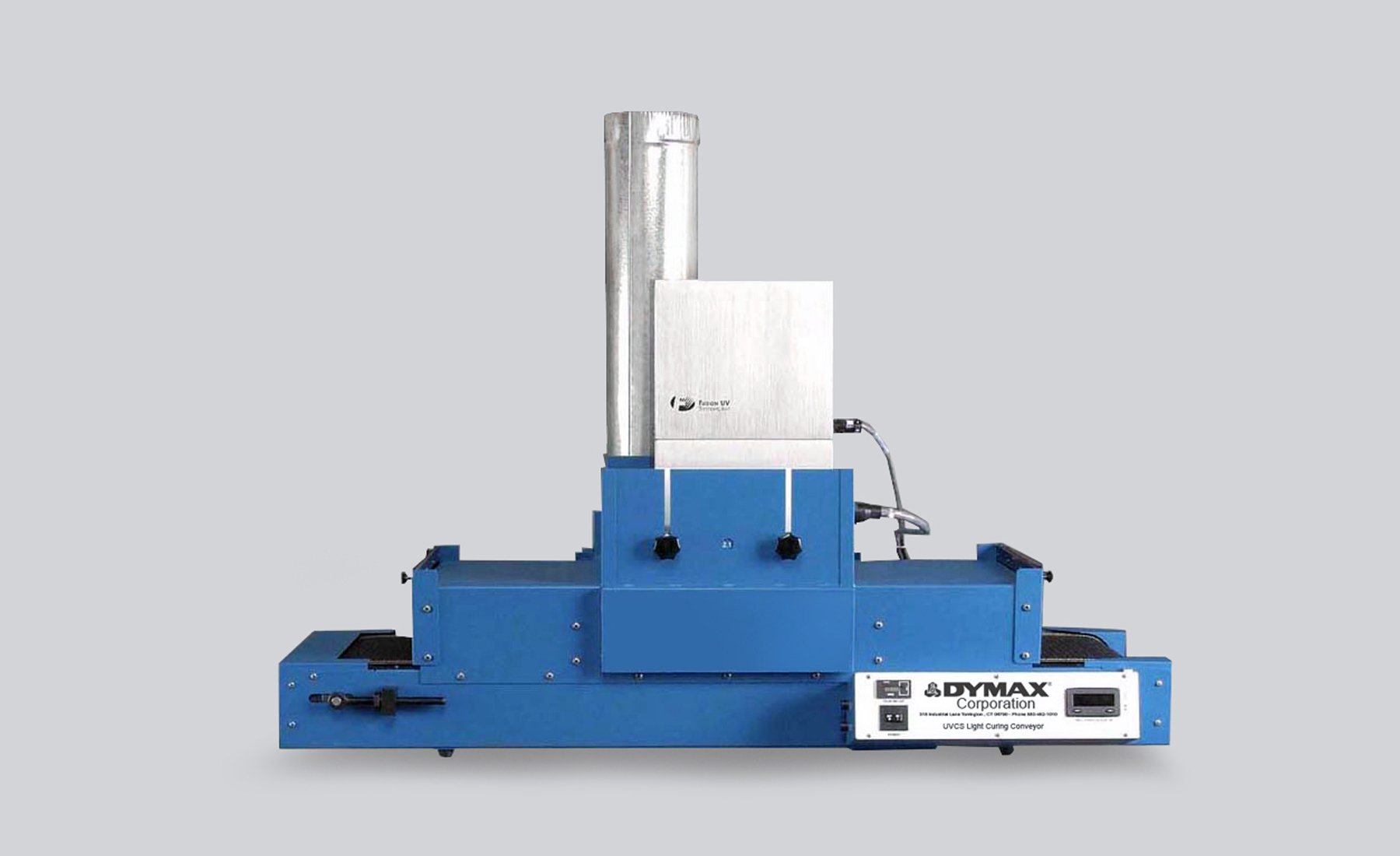

UVCS 2.0 Conveyor with Fusion F300 Lamps
UVCS 2.0 12″ Wide UV Curing Conveyors with Fusion F300 Lamps
Available Globally, Except Europe
Dymax 12 inch wide UV curing oven offers consistent, fast, and safe UV curing. These conveyors are designed for UV curing adhesives, coatings, and inks and can be outfitted with either a standard metal halide (longwave “D”) or mercury (shortwave “H”) bulbs.
Features
Features
- Available globally (except Europe)
- Consistent UV curing process
- Complete UV shielding
- Adjustable lamp to belt distance
- 4 in, 6 in, or 10 in vertical clearance
- Integral cooling and vacuum hold-down
- 1 to 27 fpm or 25 to 115 fpm
- Bulb life: 5,000 hours
- <2,500 mW/cm²
- Bench-top conveyor (cart optional)
Resources
Resources
Manual
How To
Quick Starts / FAQs
Selector Guide
Product Bulletin
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touch| Property | Specifications |
|---|---|
| Maximum UVA Intensity/(320-395 nm)¹ | 2,500 mW/cm² |
| Maximum UVA Energy/(320-395 nm) @ 5 fpm | 2.0 J/cm² |
| Line Speed | 1-27 fpm or 25-115 fpm |
| Illuminated Width | 6 in (one Fusion F300) or 12 in (two Fusion F300s) |
| Voltage | 220/230V (50 or 60 Hz) |
| Vertical Clearance | 4 in (Standard) | 6 in (with 2 in riser, PN 39218) | 10 in (with 6 in riser, PN 39280) |
| Overall Dimensions | 50.5 in L x 29.8 in W x 16.4 in H (128 cm x 76 cm x 42 cm) |
| ¹ | Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL™ 50 radiometer |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touchPart Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.

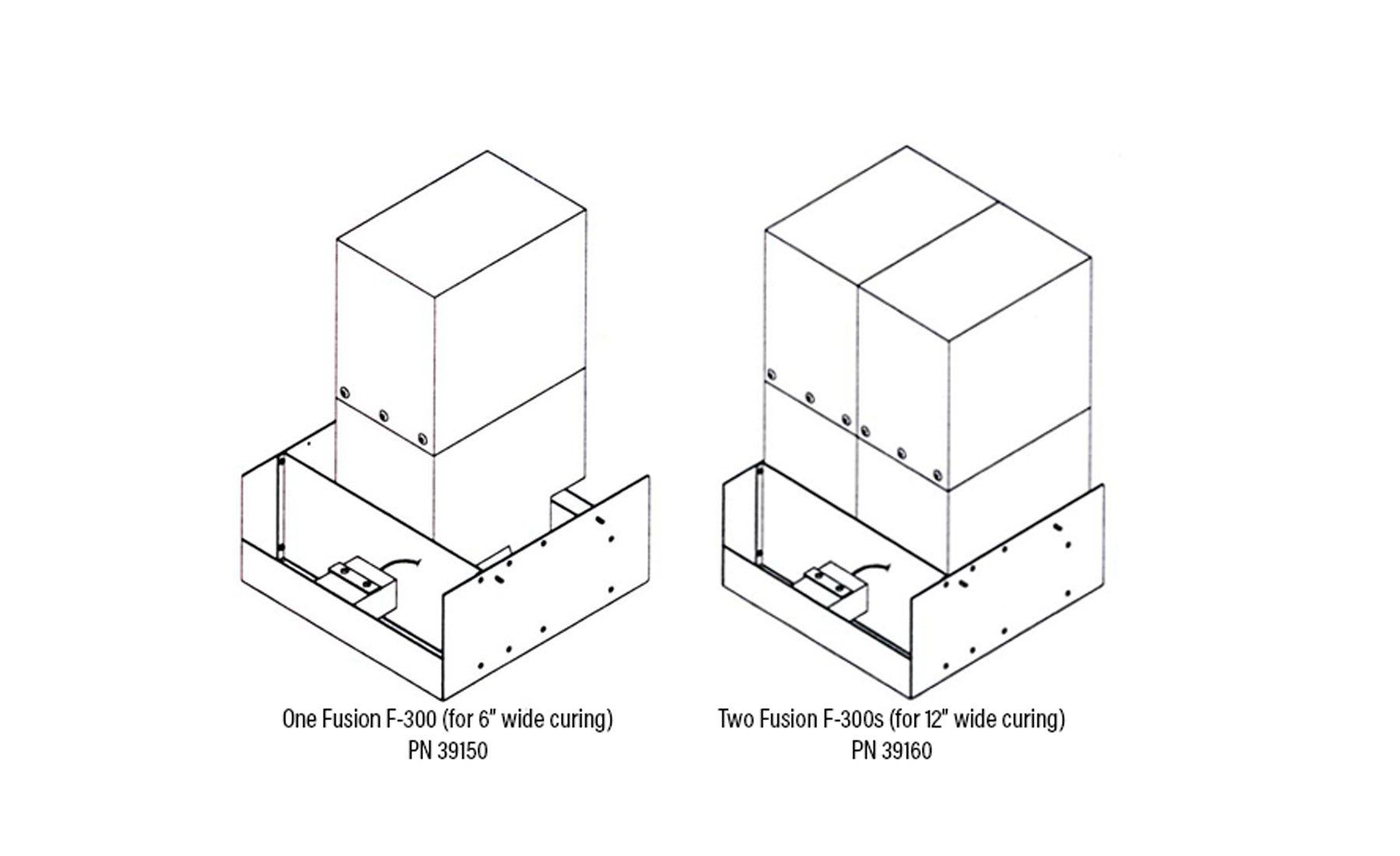

12″ Fusion F300S Conveyor
39150
One Fusion F-300 Center Mounted; North American Version (120V plug)
These conveyors have center-mounted lamps and are supplied with removable guides to channel parts into the middle 6" of the conveyor.
39160
Two Fusion F-300 Full Width; North American Version (120V plug)
These conveyors have lamps that span the full width of the conveyor.
42006
One Fusion F-300 Center Mounted; Asian Version (Type G plug)
These conveyors have center-mounted lamps and are supplied with removable guides to channel parts into the middle 6" of the conveyor.
42007
Two Fusion F-300 Full Width; Asian Version (Type G plug)
These conveyors have lamps that span the full width of the conveyor.
Replacement Bulbs
36399
Standard “D” bulb, Metal Halide
*Typical bulb life is 2,000+ hours with less than 20% degradation
36441
Optional “H” bulb Mercury
*Typical bulb life is 2,000+ hours with less than 20% degradation
Radiometers
40519
ACCU-CAL™ 50-LED for LED Flood Units: Complete radiometer for LED flood and conveyor systems; includes storage/carrying case
