UVCS SideCure Conveyor System
UVCS SideCure Conveyor System
Available Globally, Except Europe

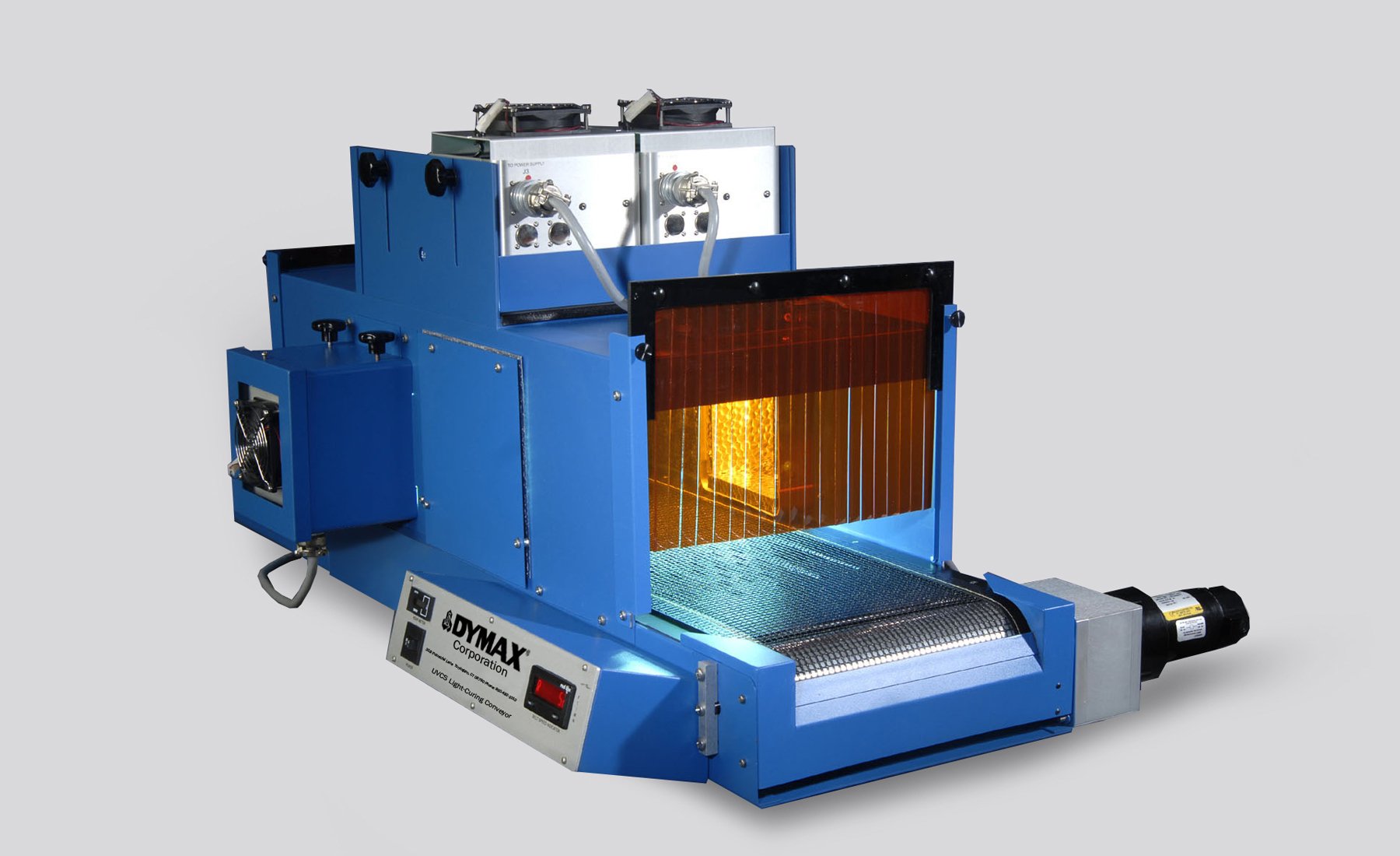

Dymax SideCure conveyor system is configured with UV curing lamps on the left, right, and/or top offer consistent, fast, and safe UV curing from the top and/or sides. These conveyors are designed for 180° curing of UV curable adhesives, UV curable coatings, and UV curable inks. These conveyors can be outfitted with either a standard metal halide (longwave), mercury (shortwave), or visible light bulbs.
Consistent line speed, consistent lamp height, and consistent intensity together provide a consistent UV curing process. These conveyors do not emit stray UV light and can be outfitted with one to eight moderate-intensity 5000-EC UV flood lamps in the configurations shown further below. Popular end-use applications include UV curing of bonding, masking, and coating applications in the medical, electronics, aerospace, and industrial industries.
Features
Features
- Available globally (except Europe)
- Consistent UV curing on the left, right, and/or top – allows for 180° UV curing
- Optical encoder-controlled speed indicator provides for accurate and consistent exposure time

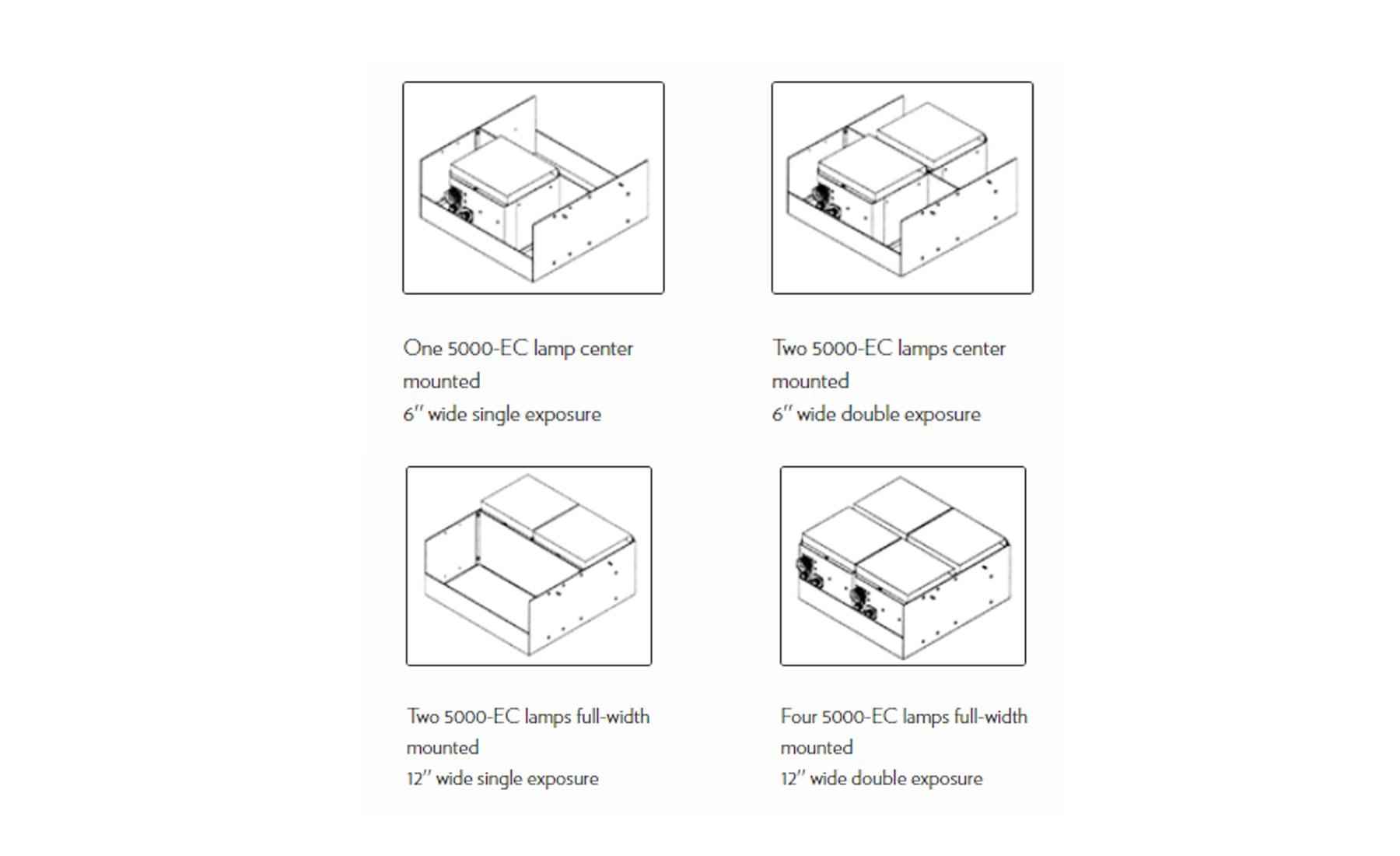

- Can house 1 to 8 UV curing lamps – versatile and scalable
- Configured with high-intensity 5000-EC lamps which provide 225 mW/cm² for fast UV curing
- Adjustable side lamps (3 in to 6 in from belt center)
- 12 in belt and 7.5 in vertical clearance allows for curing of large parts
- Small, four-foot-long, bench-top size minimizes the footprint required for UV curing
- Integral cooling and vacuum hold-down
- Complete UV shielding
- Bench-top conveyor (cart optional)
Resources
Resources
Manual
How To
Quick Starts / FAQs
Selector Guide
Product Bulletin
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touch| Property | Specifications |
|---|---|
| Maximum UVA Intensity / (320-395 nm)1 | 200 mW/cm² |
| Line Speed | 1 to 27 fpm |

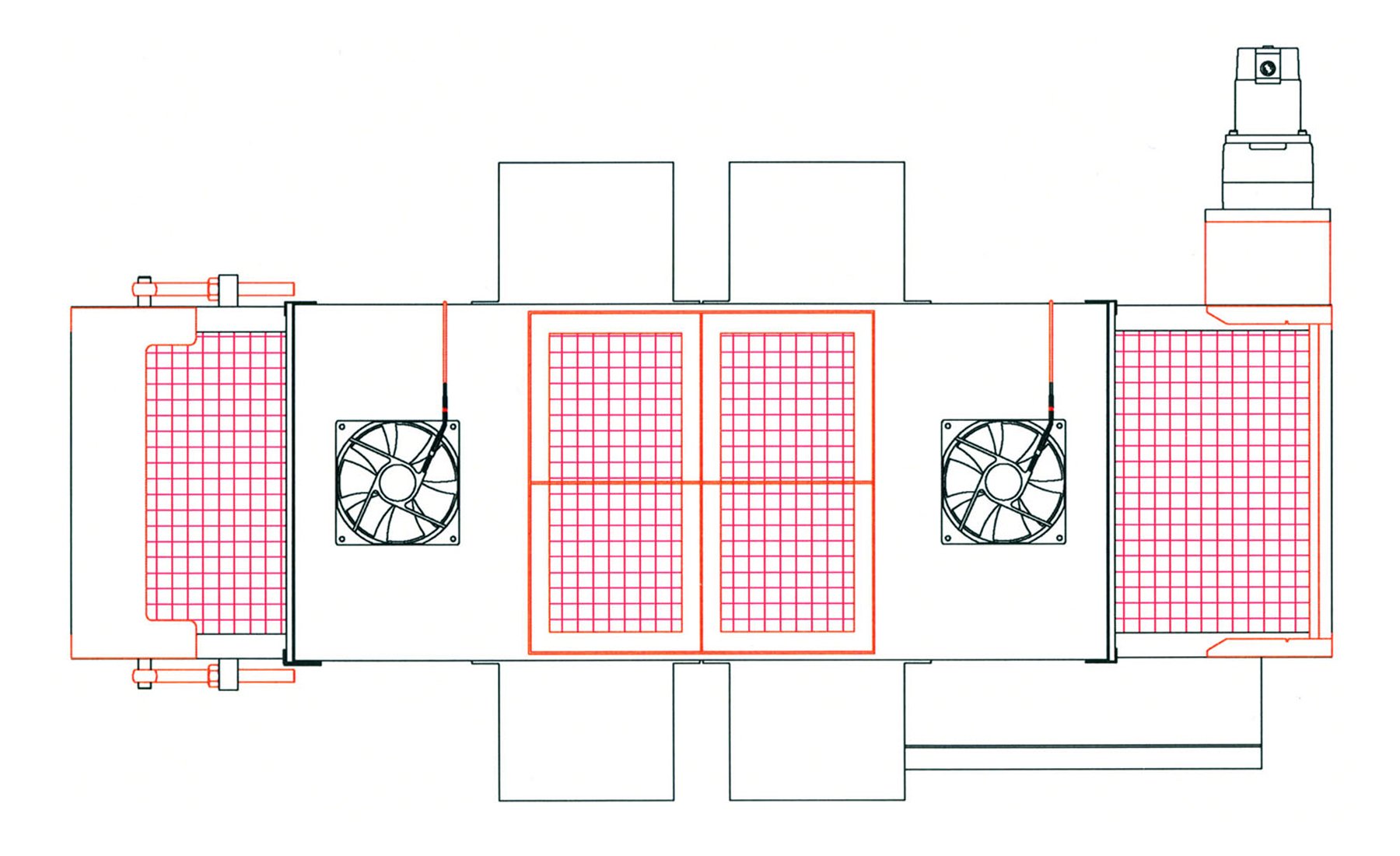

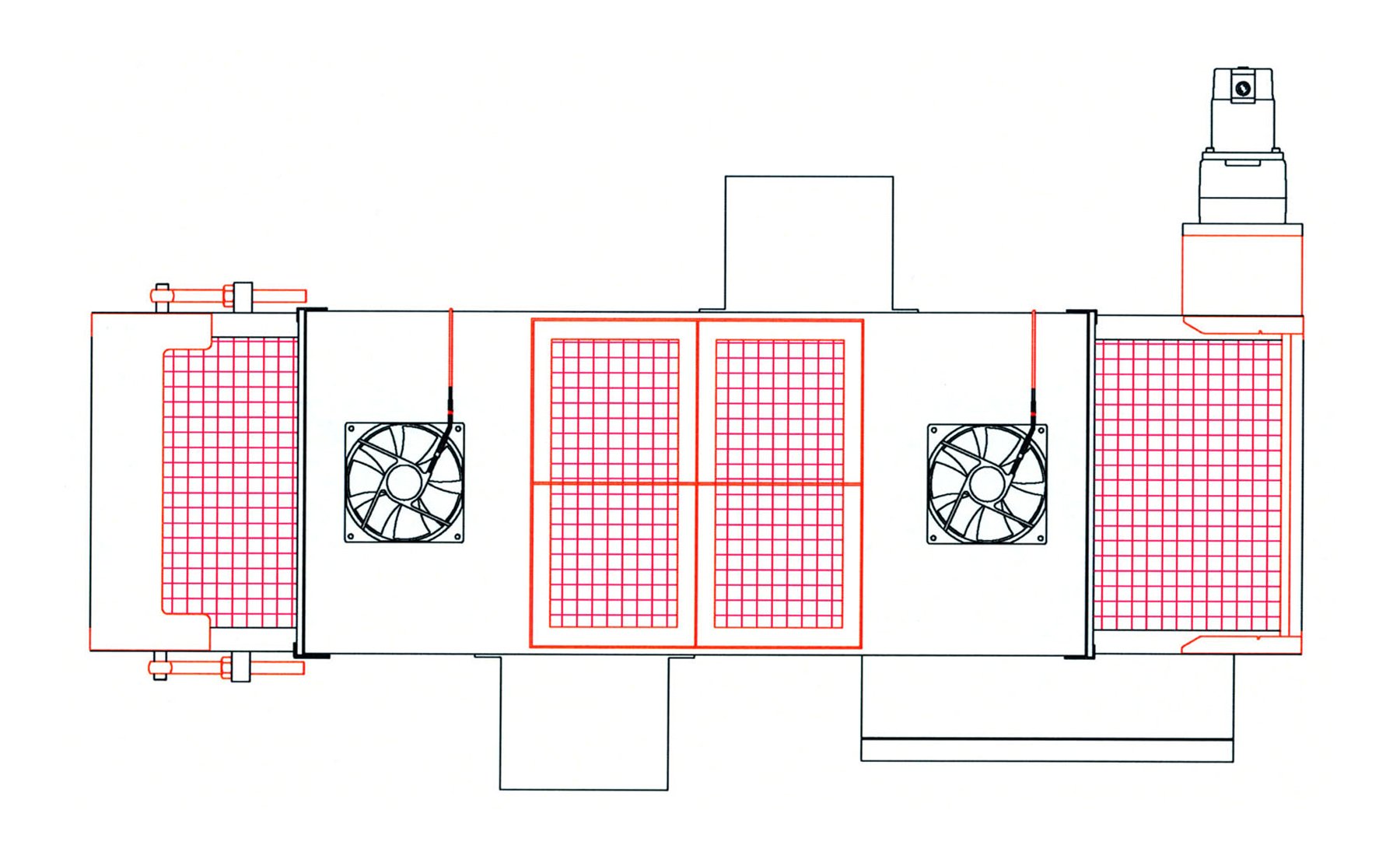

| Illuminated Width (from top) | 6 in or 12 in (depending on the number and orientation of the 5000-EC UV lamps) |
| Voltage | Lamp(s) – 90V to 260V | Conveyor – 120V or 220/230V |
| Maximum Parts Height | 7 in |

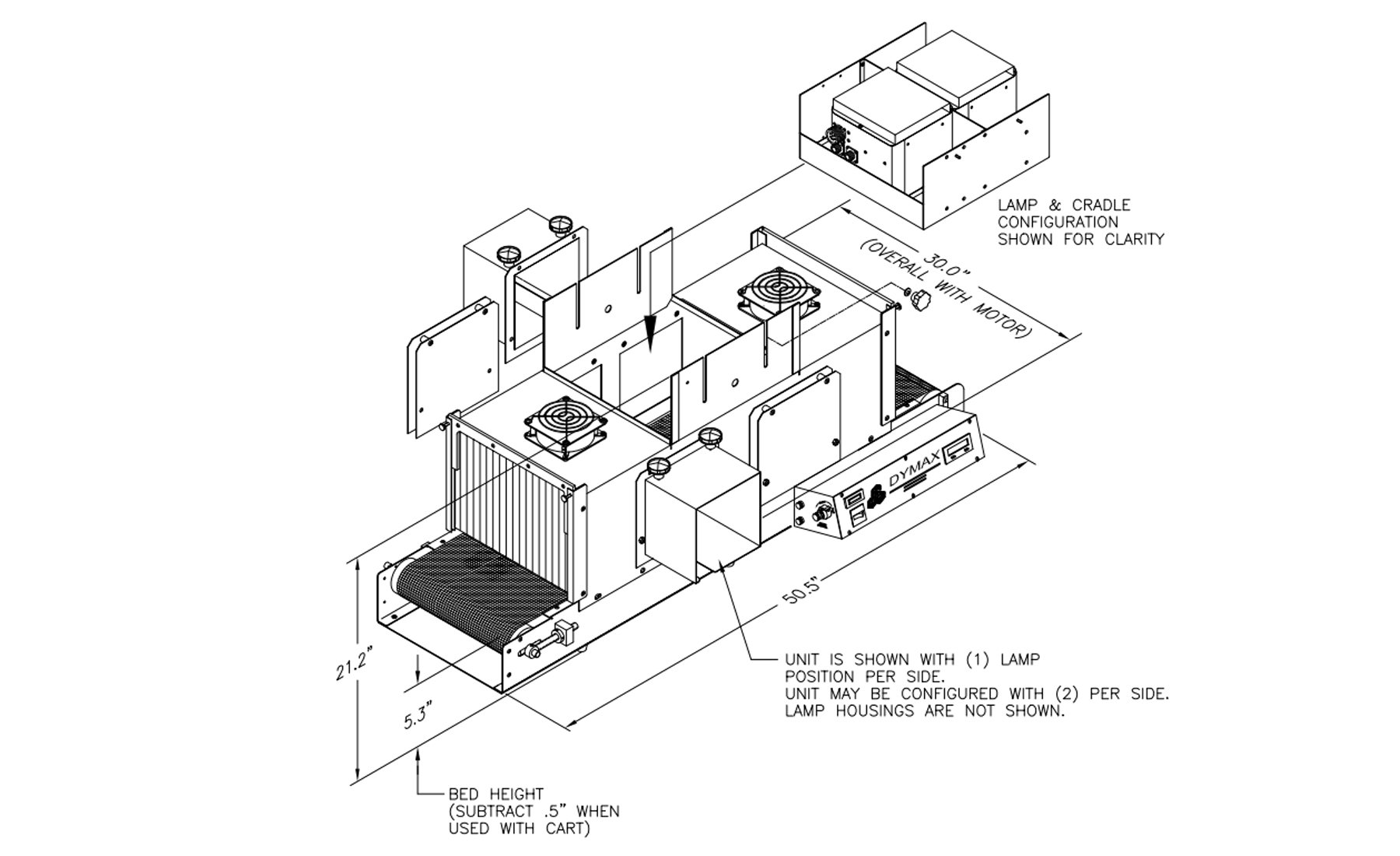

| Overall Dimensions | 51 in L x 30 in W x 21.5 in H (130 cm x 76 cm x 55 cm) |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touchPart Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.
SideCure Conveyor with 2-Sided Lamp Openings (Lamps sold separately)
39766
UVCS SideCure with 2-sided Lamp Opening. Lamps are sold separately.
Cure width: 6" [15 cm] or 12" [30 cm] depending on orientation of lamps. Belt width: 12" [30 cm].Conveyor voltage: 220/230V. Amperage with lamps: 0.9A. Total shipping weight: 450-500 lbs [204-227 kg].
39767
UVCS SideCure with 2-sided Lamp Opening. Lamps are sold separately.
Cure width: 6" [15 cm] or 12" [30 cm] depending on orientation of lamps. Belt width: 12" [30 cm].Conveyor voltage: 115V. Amperage with lamps: 1.6A. Total shipping weight: 450-500 lbs [204-227 kg].
SideCure 5000-EC with 2-side lamp openings
39798
SideCure 5000-EC' with 2-side Lamp Openings for up to eight lamps. Lamps are sold separately.
These 5000-EC's are specifically designed for the SideCure Conveyor. Intensity, footprint, and power requirements are identical, only the connection differ.
Replacement Bulbs
38560
400-Watt Metal Halide-Standard Bulb
For use with UVCS, SideCure, and EdgeCarry conveyors outfitted with the Dymax EC-series flood lamps.
*2,000+ hours with less than 20% degradation (typical)
36970
Mercury 400-Watt Bulb
These bulbs are primarily designed for curing UV inks and cationic epoxies.
Fits Dymax ECE 2000, ECE 5000, 5000-EC, 5000-PC, 5000-AS, 2000-EC, 2000-PC, 2000-AS, 1200-EC, 1200-PC, 1200-AS, BondBox, PC-2, PC-5 Porta-Ray
*2,000+ hours with less than 20% degradation (typical)
36658
400-Watt Visible Bulb.
These bulbs are primarily designed for curing UV/Visible curing adhesives through UV-blocked, but transparent substrates.
For use with UVCS, SideCure, and Edge-Carry conveyors outfitted with Dymax EC-series flood lamps.
*2,000+ hours with less than 20% degradation (typical)
