BlueWave QX4
Control up to four LED Spot-Cure Heads Independently for Greater Curing Flexibility
CE Marked - Available Globally

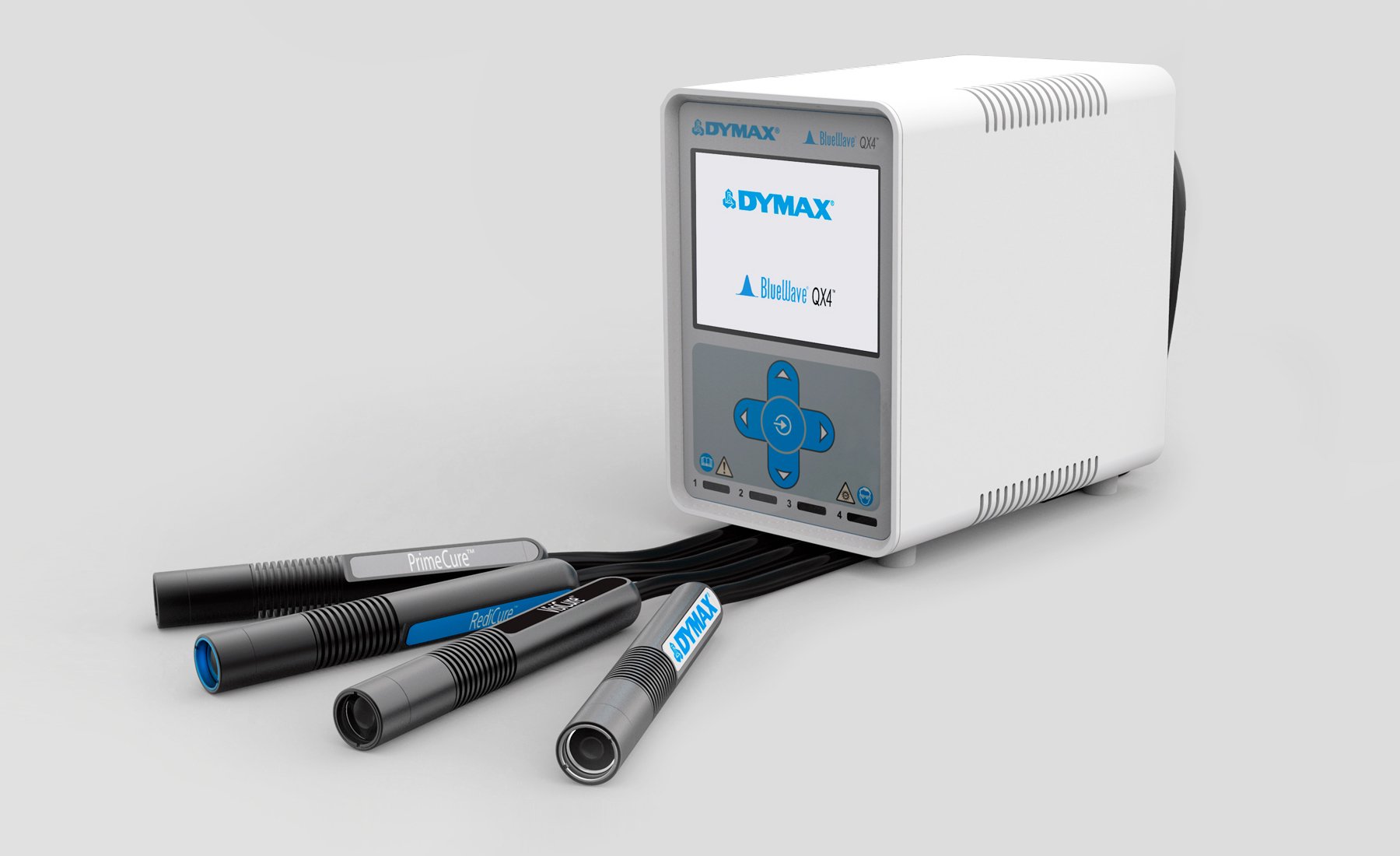

Dymax BlueWave® QX4 high-intensity spot-curing system features all the benefits of LED-curing technology in a smaller, more versatile unit. This system is comprised of a controller with a footswitch and up to four LED heads. LED heads are available in 365, 385, and 405 nm and can be outfitted with either the 3-, 5-, or 8-mm diameter focusing lenses. LED heads and focusing lenses can be used in any combination and can be controlled through the system’s variable mode, a feature that allows each head to be individually programmed for intensity and cycle times. Individual exposure times and intensity settings can be set to 1% increments for each LED head, giving users maximum curing flexibility
In addition to the curing flexibility, the BlueWave® QX4 also features an easy-to-use control interface that allows flexibility in setup and use of the unit. The unit can be activated by a foot pedal or by PLC interface, allowing it to be easily incorporated into automated systems.
Complete BlueWave® QX4 systems feature a controller/power supply with a footswitch, up to four LED heads/wands, and one of the three lenses needs to be ordered for each head/wand in order to function properly. The length of the head/wand with the direct wired cable is 1.5 M (end to end). Components are sold separately.
Take advantage of the opportunity to evaluate our light-curing systems for two weeks free of charge through our Try-and-Buy program.
PLEASE NOTE: Dymax has discontinued production of the original QX4 controllers, LED heads, and lenses. We will continue selling the QX4 until inventory is depleted in approximately Q1 of 2024. Please work with your territory manager and application engineering team to transition over to our newer QX4 V2.0
Features
Features
- One controller controls up to four LED heads for maximum application flexibility
- LED heads for 365, 385, or 405 nm wavelengths for better compatibility with different light-curable materials
- Variable mode allows each LED head to be programmed independently
- Individual exposure times and intensity settings available in 1% increments for each LED head allows for maximum curing flexibility
- Interchangeable/replaceable focusing lenses in 3-, 5-, and 8-mm diameters that allow tailoring of the unit to your curing requirements
- Instant on-off – no warm-up period and more energy efficient
- Efficient LED temperature management for continuous operation without overheating and comfortable hand-held operating temperature
- PLC interface that easily incorporated into automated systems
Resources
Resources
Manual
Manual: BlueWave QX4 LED Spot-Curing System
Manual: BlueWave QX4
Manual: Bluewave QX4 LED Spot-Curing
Quick Starts / FAQs
FAQ: BlueWave QX4
Quick Start: QX4 Array Assembly & Setup
FAQ: BlueWave QX4 Frequently Asked Questions
How To
FAQ: BlueWave QX4
How to Validate a Spot-Cure System
Selector Guide
Guide: Light-Cure Equipment
Product Bulletin
Equipment Drawings

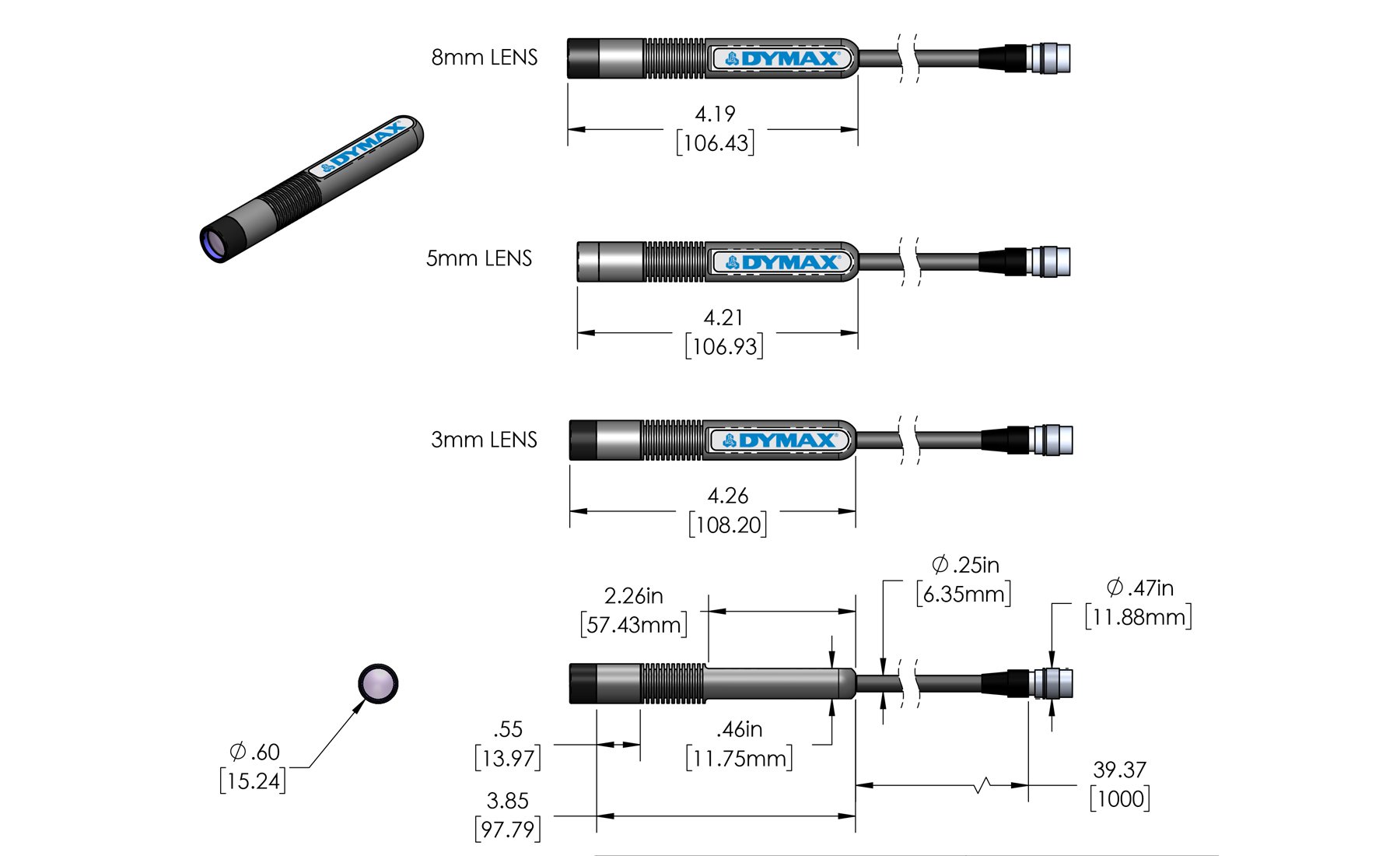

CAD (STEP): QX4 Wand

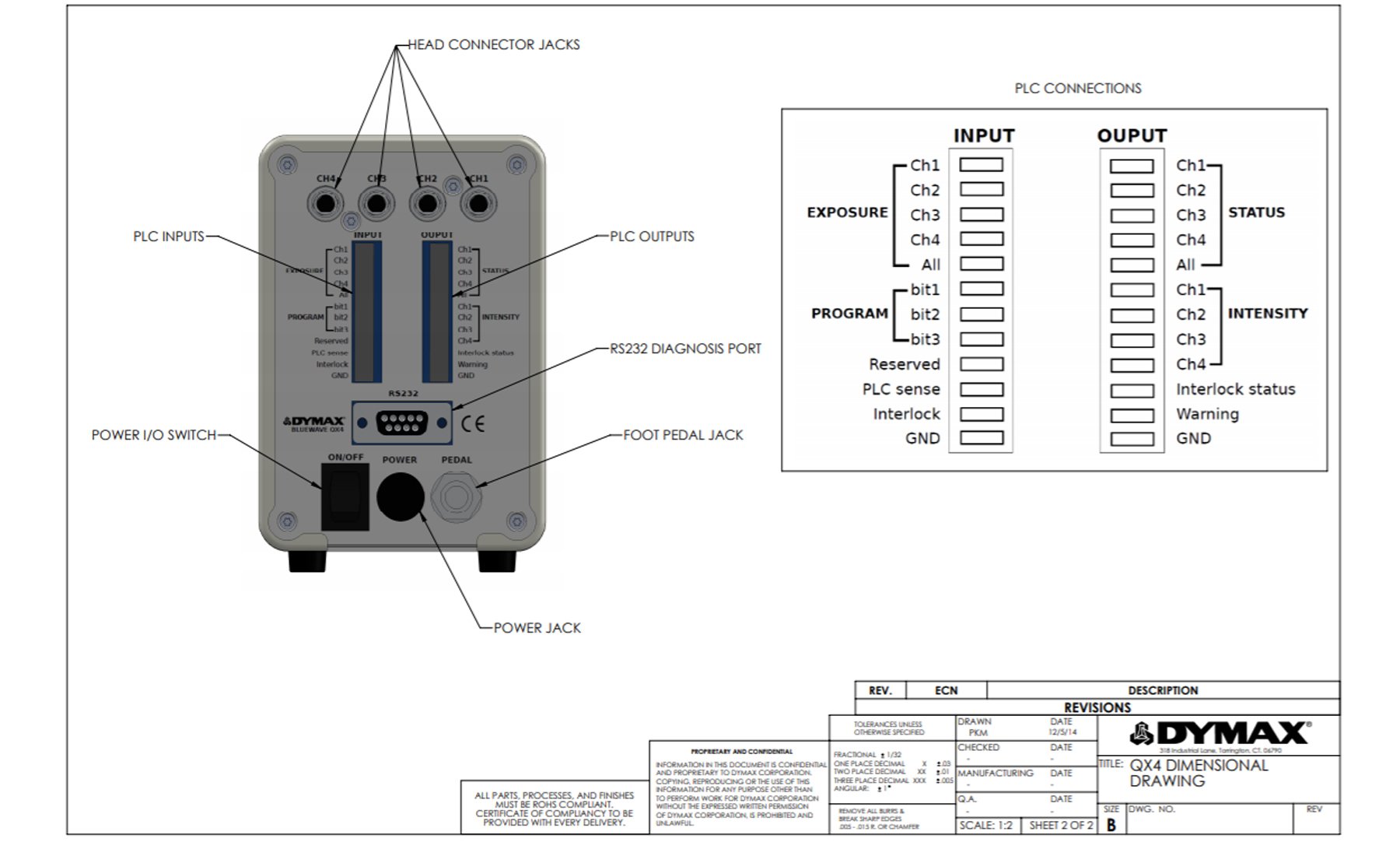

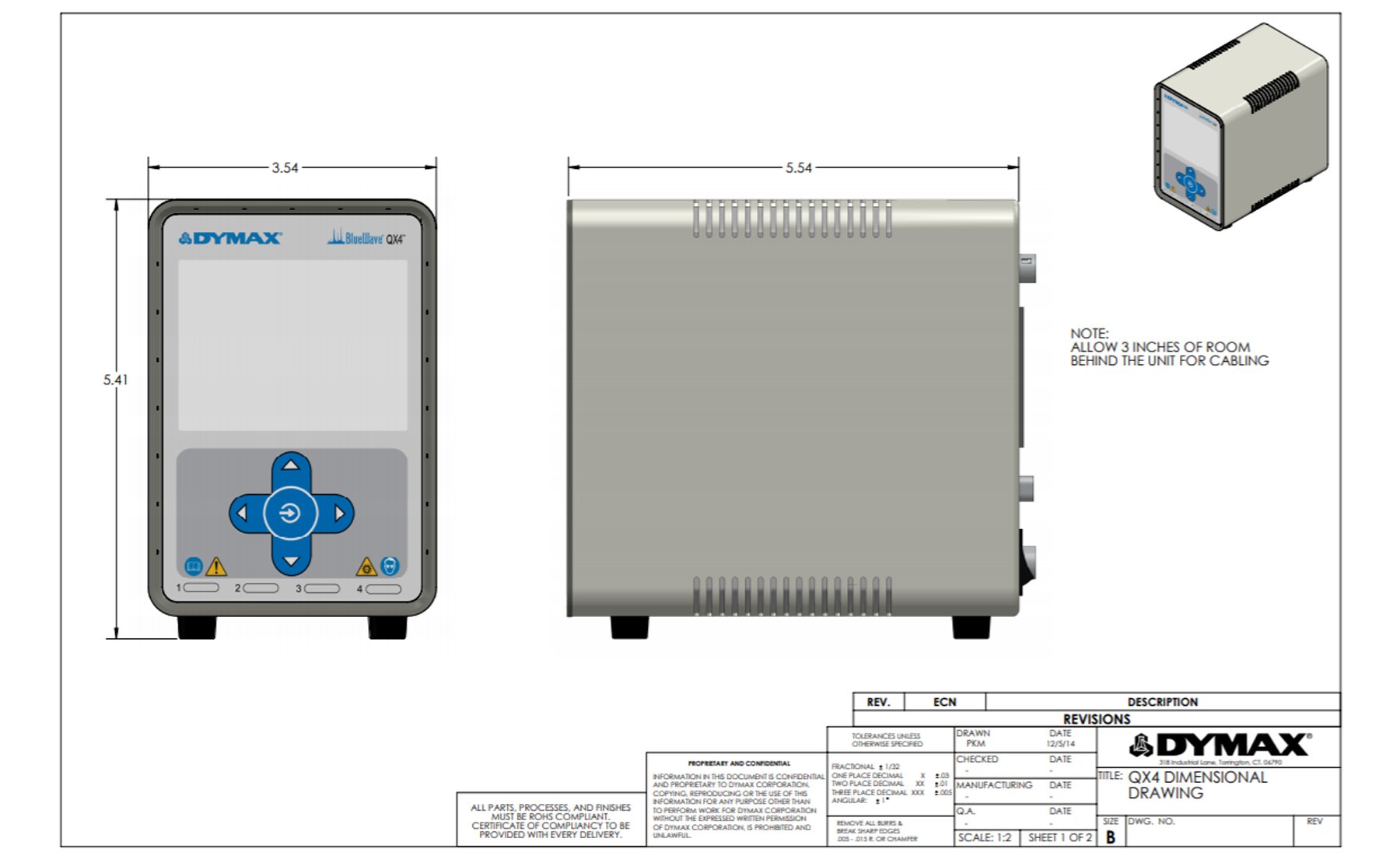

Drawing: QX4 Controller
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

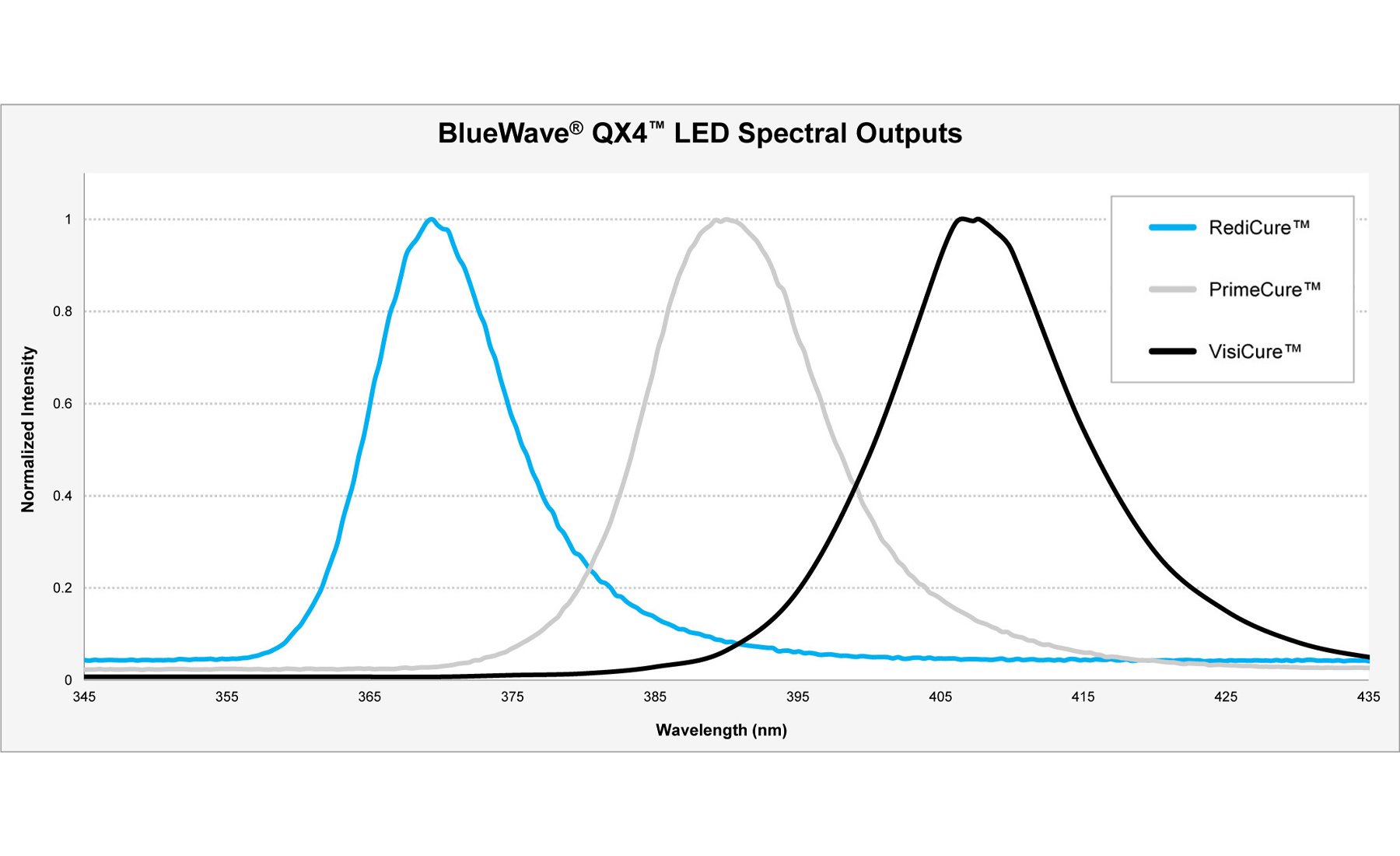

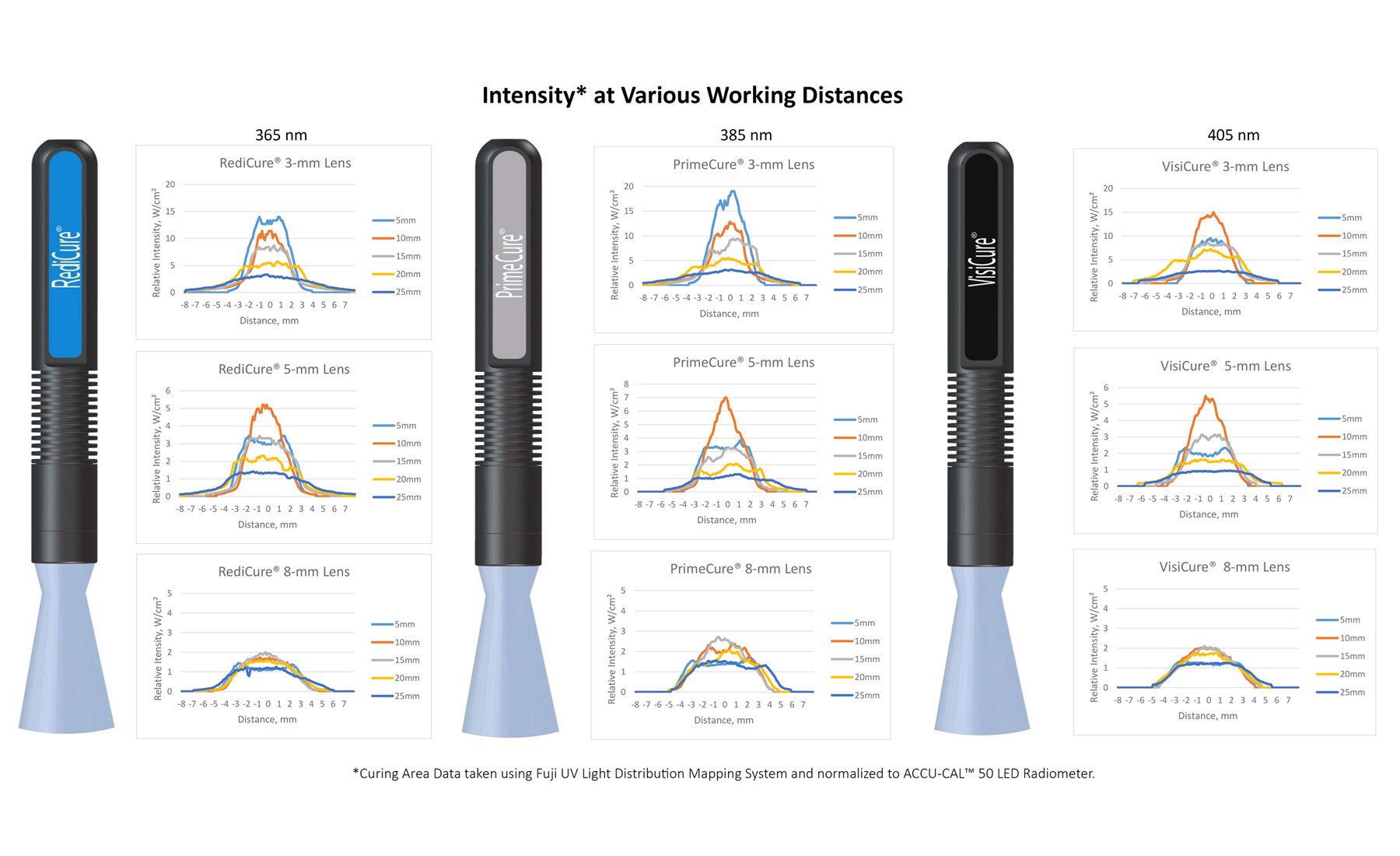

Get in touch| Property | Specifications |
|---|---|
| Output frequency | RediCure: 365 nm |
| PrimeCure: 385 nm | |
| VisiCure: 405 nm | |
| Intensity output | RediCure: 13.9 W/cm² |
| PrimeCure: 18.8 W/cm² | |
| VisiCure: 14.9 W/cm² | |
| Power supply input | 100-240 V ~2 A, 50/60 Hz |
| LED timer | 0.1 to 999 seconds |
| LED activation | Footswitch, front panel, or PLC |
| Cooling | Natural convection |
| Dimensions (W x D x H) | 3.5 in x 5.5 in x 5.6 in (9.0 cm x 14.1 cm x 13.7 cm) |
| Weight | Controller: 2.3 lbs (1.03 kg) |
| Head: 0.2 lbs (0.08 kg) | |
| Unit warranty | 1 year from purchase date |
| Operating environment | 5-40°C (41-104°F), non-condensing |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

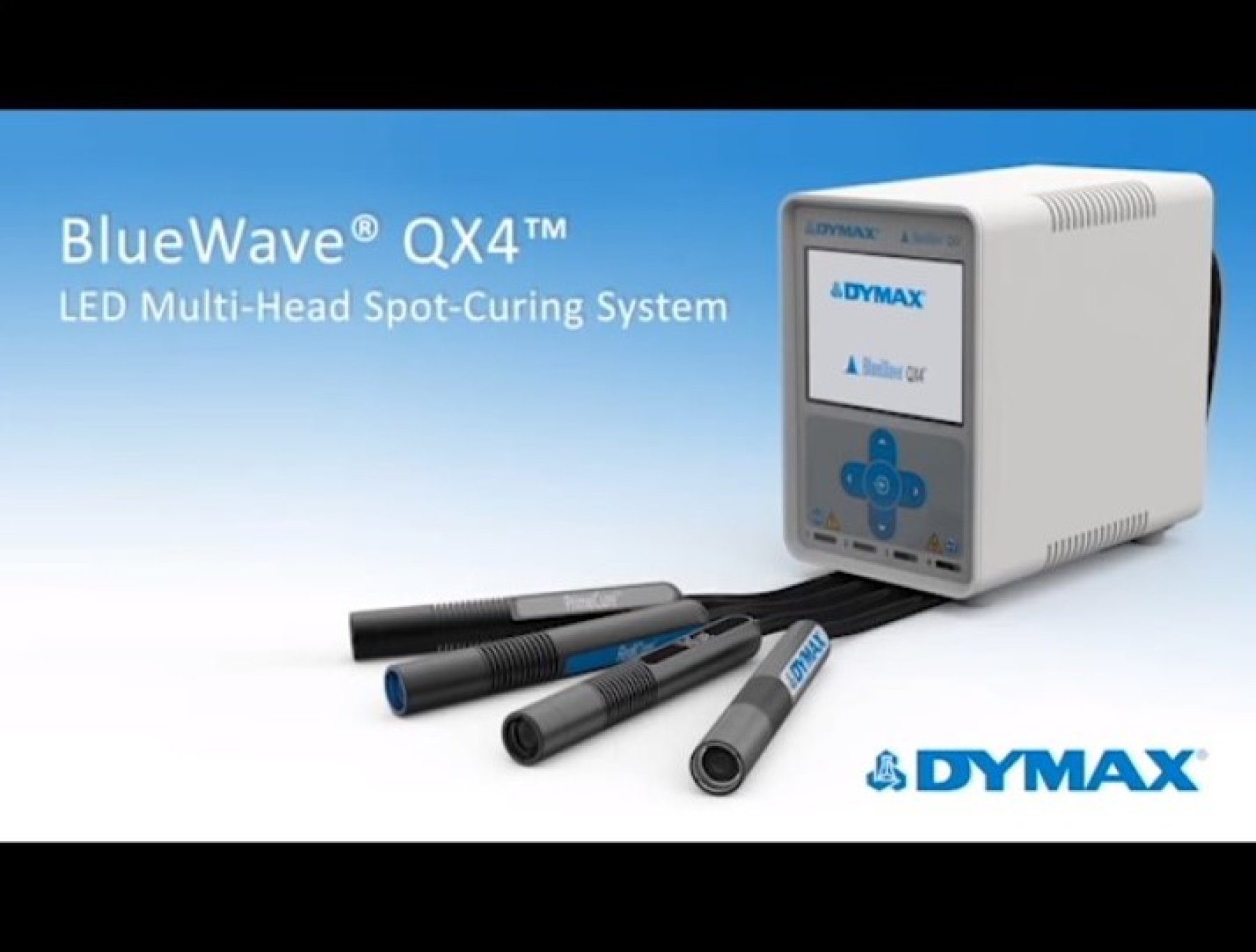

Get in touchBlueWave® QX4 LED Multi-Head Spot Light-Curing System
Dennis DellAccio, Equipment Manager for Dymax Corporation, discusses the Dymax BlueWave QX4 LED light-curing system. Highlights include a substrate curing demonstration and an overview about the benefits of LED curing technology. Dennis also shows important features of the system including the multiple lightguides and easily interchangeable focusing lenses that allow for maximum curing flexibility.
Part Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.
LED Heads / Lenses
43161
RediCure® 365 nm LED Head/Wand (1 M)
43162
PrimeCure® 385 nm LED Head/Wand (1 M)
43163
VisiCure® 405 nm LED Head/Wand (1 M)
C- 41558
Clearance - 5-mm Acrylic Lens QX4
Limited quantities, please submit RFQ for pricing and availability.
C- 43161
Clearance - RediCure® 365 nm LED Head/Wand (1 M)
Limited quantities, please submit RFQ for pricing and availability.
BlueWave® QX4 Controller
41571
Controller/Power Supply with Foot Switch
North American Version (Cord with 120V Plug)
41572
Controller/Power Supply with Foot Switch - No Power Cord*
*For European customers, the appropriate power cord will be added.
41573
Controller/Power Supply with Foot Switch
Asian Version (Type G Power Cord)
C- 41571
Clearance - BlueWave QX4 V1 - Controller/Power Supply with Foot Switch
North American Version (Cord with 120V Plug)
Limited quantities, please submit RFQ for pricing and availability.
BlueWave® QX4 Lens
43164
3-mm Lens
43165
5-mm Lens
43166
8-mm Lens
43197
3-mm Lens LED Head Upgrade Kit (upgrades existing LED heads to the latest design)
43198
5-mm Lens LED Head Upgrade Kit (upgrades existing LED heads to the latest design)
43199
8-mm Lens LED Head Upgrade Kit (upgrades existing LED heads to the latest design)
C- 43164
Clearance - 3-mm Lens QX4
Limited quantities, please submit RFQ for pricing and availability.
C- 43166
Clearance - 8-mm Lens QX4
Limited quantities, please submit RFQ for pricing and availability.
Connection Cable Extensions
41563
0.5 M Extension
41564
1.0 M Extension
41565
1.5 M Extension
41566
2.0 M Extension
C- 41564
Clearance - 1.0 M Extension Connection Cable QX4
Limited quantities, please submit RFQ for pricing and availability.
Accessories & Spare Parts
41547
AC Power Adapter
41548
North American Power Cord
41549
Asian Power Cord
5028
Foot Switch
Radiometers
40505
ACCU-CAL™ 50-LED for LED Spot and Flood Units: Complete radiometer with 3 mm, 5 mm, and 8 mm lightguide adapters, lightguide simulator*, and an optical adapter for use with the BlueWave® QX4® and BlueWave® MX-275; includes storage/carrying case
*A lightguide simulator is used to measure direct spot lamp intensity (required to calculate lightguide transmissions)
