True Black Conformal Coating with Secondary Heat Cure

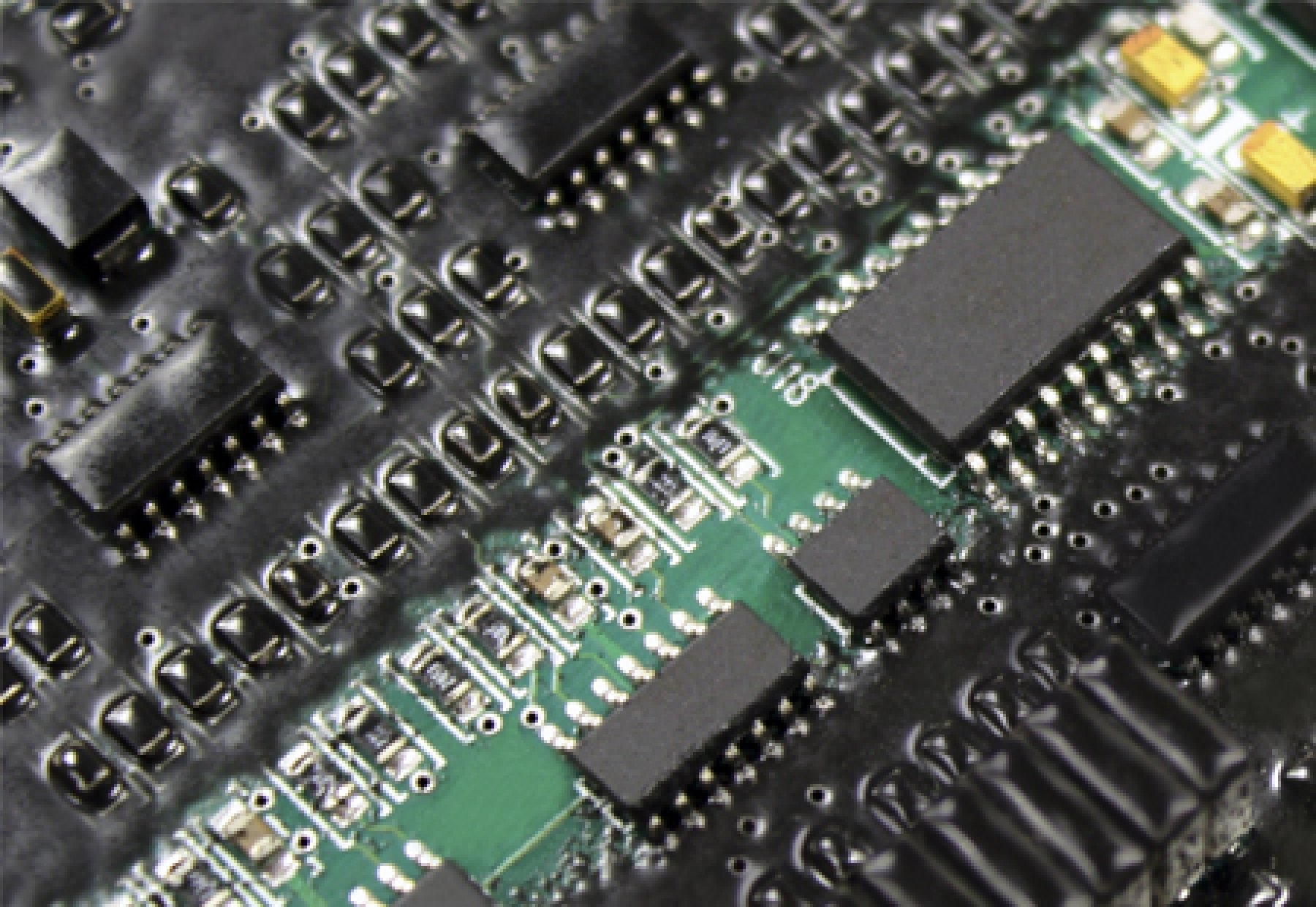

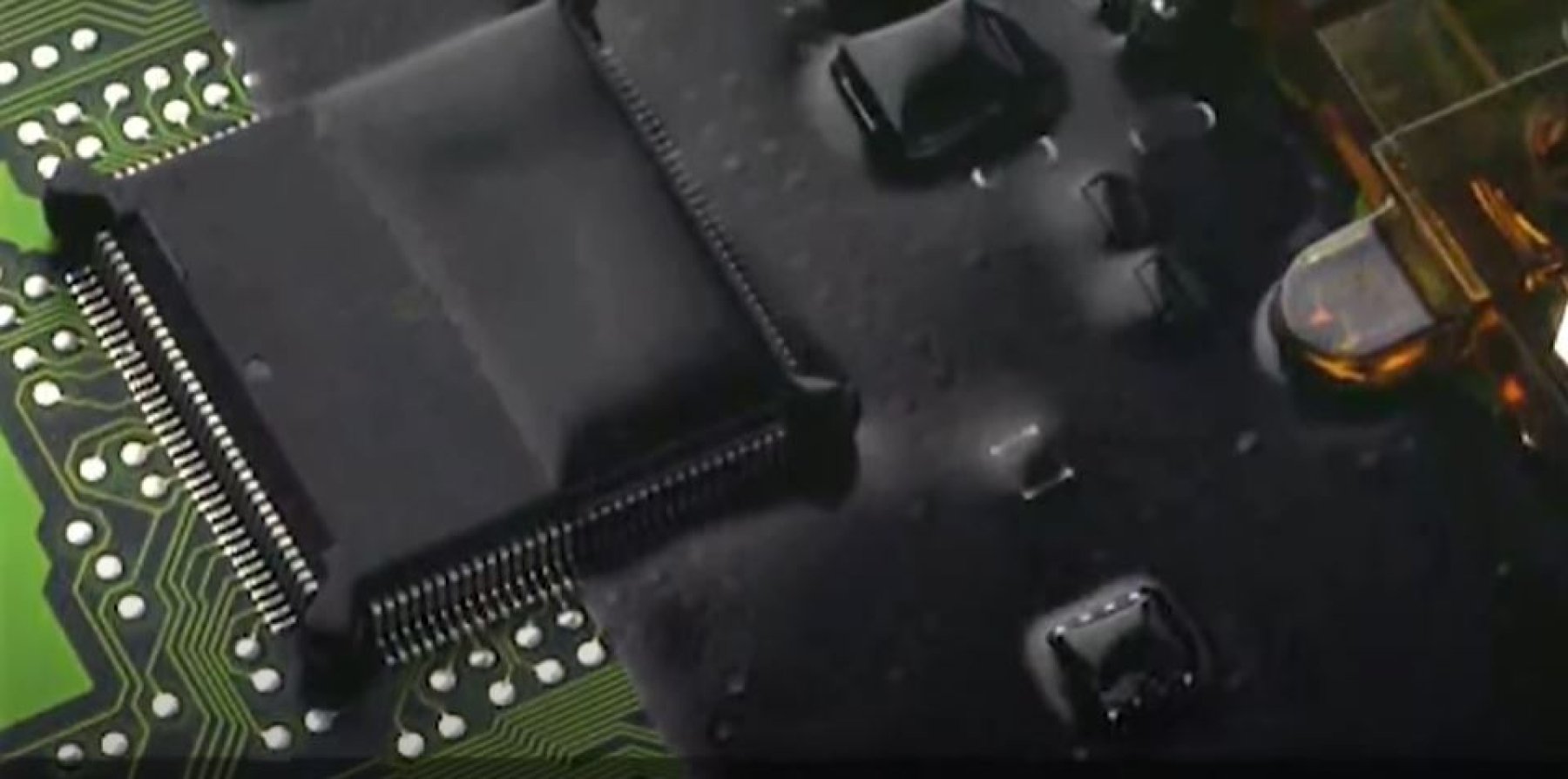

Multi-Cure^® 9451 cures upon exposure to UV/Visible light for conformal coating of printed circuit boards as well as tamper-proofing. The product is a 100% solids, true black thin protective coating that has a secondary heat-cure capability for curing in shadow areas. It is excellent for hiding components, board features, as well as sensitive information. The material is one part so no mixing is required and it is optimized for single-pass coating up to 0.004 in.

Typical applications include conformal coating, thin protective black coating, tamper-evident coating.  Recommended substrates include FR4, glass, and stainless steel.

Dymax materials have no solvents added and cure upon exposure to light. Their ability to cure in seconds results in lower processing costs. When cured with Dymax UV light curing spot lamps, focused beam lamps, flood lamps, or conveyor systems they deliver optimum speed and performance for maximum efficiency. Dymax lamps offer the optimum balance of UV and visible light for the fastest, deepest cures.

Multi-Cure^® 9451 is in full compliance with the RoHS2 Directives 2015/863/EC.
