Blue PCB Protective Maskant

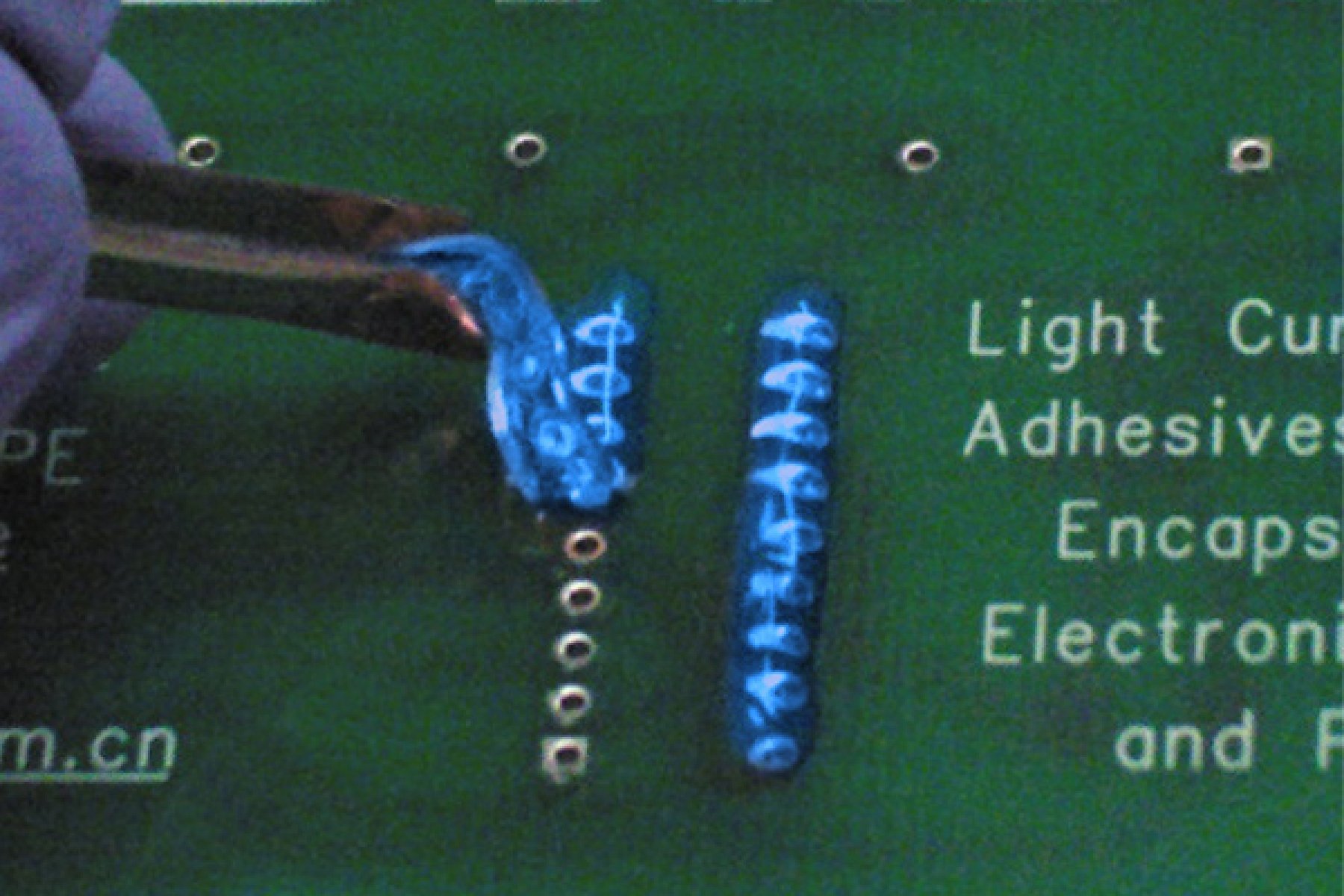

SpeedMask^® 9-20479-B-REV-A is a blue maskant that cures upon exposure to UV/Visible light for rapid masking of electronic components and assemblies. The product is easily removable, eliminating the concern of ionic contamination or silicone left behind by other methods. Typical applications include masking for conformal coating applications as well as masking for wave solder and reflow processes.

The material is halogen-free and has no solvents added This peelable mask protects keep-out areas during conformal coating applications and is compatible with gold and copper pins. 9-20479-B-REV-A is exceptionally thixotropic for manual or automated dispensing on boards or components that may be difficult to mask with other methods.

Dymax materials have no solvents added and cure upon exposure to light. Their ability to cure in seconds results in lower processing costs. When cured with Dymax UV light curing spot lamps, focused beam lamps, flood lamps, or conveyor systems they deliver optimum speed and performance for maximum efficiency. Dymax lamps offer the optimum balance of UV and visible light for the fastest, deepest cures.

SpeedMask^® 9-20479-B-REV-A is in full compliance with the RoHS Directives 2015/863/EU.
